RADIATOR HOSE - RESERVE TANK
View large diagramHide diagramView diagramView printable catalogTranslate

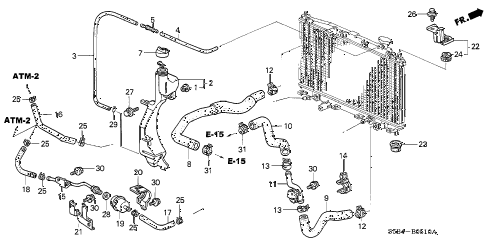

2005 civic MX(HYBRID) 4 DOOR 5MT RADIATOR HOSE - RESERVE TANK diagram

  • 001

    collar, manifold cover mounting

    Part Number: 17163-PH7-300

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.03

  • 002

    tank, reserve

    Part Number: 19101-PZA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $38.17

  • 003

    hose a, reserve tank

    Part Number: 19103-PZA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.32

  • 004

    hose assy. b, reserve tank

    Part Number: 19104-PZA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $10.08

  • 005

    joint

    Part Number: 19105-PLC-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $24.02

  • 007

    cap, filler

    Part Number: 19109-PH1-620

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $6.10

  • 008

    hose, water (upper)

    Part Number: 19501-PZA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $31.90

  • 009

    hose, water (lower) (a)

    Part Number: 19502-PZA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $17.70

  • 010

    hose, water (lower) (b)

    Part Number: 19504-PZA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $17.70

  • 011

    pipe, water (lower)

    Part Number: 19508-PZA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $36.48

  • 012

    clip, water hose (keihin)

    Part Number: 19511-PZA-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.97

  • 013

    clip, water hose (chuo spring)

    Part Number: 19511-PA6-003

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $7.25

  • 014

    clamp, throttle wire

    Part Number: 24365-PM0-901

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.92

  • 022

    bracket, radiator mount (upper)

    Part Number: 74171-S5A-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $18.18

  • 023

    cushion, radiator mounting (lower)

    Part Number: 74172-SS0-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $14.48

  • 024

    cushion, radiator mounting (upper)

    Part Number: 74173-SJ4-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.55

  • 026

    bolt-washer (6x16)

    Part Number: 93405-06016-04

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.05

  • 027

    bolt-washer (6x20)

    Part Number: 93405-06020-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.05

  • 029

    clip, tube (c11)

    Part Number: 95002-70000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.93

  • 030

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.03

  • 031

    clip, water hose (chuo spring)

    Part Number: 19511-PA6-003

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $7.25
