FUEL TANK
View large diagramHide diagramView diagramView printable catalogTranslate

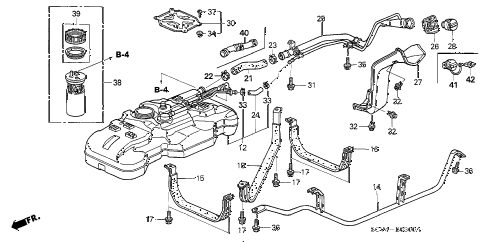

2005 element EX(2WD,SD AIR BAG 5 DOOR 5MT FUEL TANK diagram

  • 012

    tank, fuel

    Part Number: 17500-SCV-A31

    ''


    KA - US - 49 State Spec

    • $459.05

  • 014

    pipe, fuel tank guard

    Part Number: 17518-SCV-A00

    ''


    KA - US - 49 State Spec

    • $193.65

  • 015

    band, fr. fuel tank mounting

    Part Number: 17521-SCV-A00

    ''


    KA - US - 49 State Spec

    • $76.08

  • 016

    band, rr. fuel tank mounting

    Part Number: 17522-SCV-A00

    ''


    KA - US - 49 State Spec

    • $75.65

  • 017

    bolt-washer (10x35)

    Part Number: 17525-SM4-000

    ''


    KA - US - 49 State Spec

    • $3.65

  • 018

    band, fuel tank mounting center

    Part Number: 17526-SCV-A00

    ''


    KA - US - 49 State Spec

    • $107.05

  • 021

    tube, filler neck

    Part Number: 17651-SCV-A01

    ''


    KA - US - 49 State Spec

    • $20.87

  • 022

    clip, filler tube

    Part Number: 17652-SDA-A31

    ''


    KA - US - 49 State Spec

    • $3.97

  • 023

    clip, filler tube (28.6mm)

    Part Number: 17652-SDA-003

    ''


    KA - US - 49 State Spec

    • $4.30

  • 024

    tube, return

    Part Number: 17654-SCV-A01

    ''


    KA - US - 49 State Spec

    • $12.82

  • 025

    pipe, fuel filler

    Part Number: 17660-SCV-A02

    ''


    KA - US - 49 State Spec

    • $169.57

  • 026

    gasket, fuel filler (with clip)

    Part Number: 17662-S04-003

    ''


    KA - US - 49 State Spec

    • $7.52

  • 027

    cover, fuel filler pipe

    Part Number: 17668-SCV-A00

    ''


    KA - US - 49 State Spec

    • $90.75

  • 028

    cap, fuel filler (toyoda)

    Part Number: 17670-S5A-A32

    ''


    KA - US - 49 State Spec

    • $39.73

  • 030

    cap assy., floor maintenance hole

    Part Number: 74660-SCV-A00

    ''


    KA - US - 49 State Spec

    • $16.83

  • 031

    bolt, ground (6x16)

    Part Number: 90150-S04-003

    ''


    KA - US - 49 State Spec

    • $2.82

  • 032

    clip, side apron molding

    Part Number: 90657-SA5-003

    ''


    KA - US - 49 State Spec

    • $0.77

  • 033

    clamp, fuel tube (d17.0)

    Part Number: 90700-SDA-003

    ''


    KA - US - 49 State Spec

    • $4.12

  • 034

    grommet, screw (5mm) (black)

    Part Number: 91601-SH3-013

    ''


    KA - US - 49 State Spec

    • $3.15

  • 035

    bolt-washer (6x16)

    Part Number: 93405-06016-08

    ''


    KA - US - 49 State Spec

    • $1.20

  • 036

    bolt-washer (8x20)

    Part Number: 93407-08020-04

    ''


    KA - US - 49 State Spec

    • $1.35

  • 037

    screw, tapping (5x12)

    Part Number: 93901-25220

    ''


    KA - US - 49 State Spec

    • $0.58

  • 038

    module assy., fuel pump

    Part Number: 17045-SCV-A00

    ''


    KA - US - 49 State Spec

    • $326.65

  • 039

    nut & gasket set, fuel lock (yachiyo)

    Part Number: 17046-S5A-A00

    ''


    KA - US - 49 State Spec

    • $59.68
