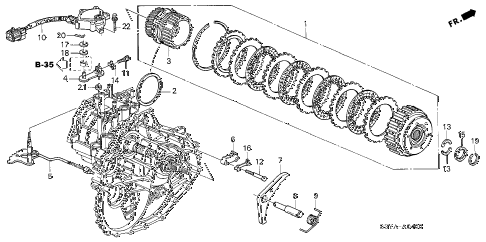

2005 insight DX 3 DOOR CVT AT STARTING CLUTCH diagram
Back to Top
clutch set, startingclutch set,startring, sealgear assy., secondary drivelever, controlshaft, controlholder, parking brake rodpawl, parking brakeshaft, parkingspring, parking pawlsensor assy., positionbolt, hex. (6mm)bolt, hex. (6mm)cotter (25.5) (2.9) (a)cotter (25.5) (2.9) (a)cotter (25.5) (3.0) (b)cotter (25.5) (3.0) (b)cotter (25.5) (3.1) (c)cotter (25.5) (3.1) (c)cotter (25.5) (3.2) (d)cotter (25.5) (3.2) (d)washer, lock (6mm)retainer, cotterwasher, tongued (6mm)washer, tongued (6mm)washer a, control wirewasher b (0.5mm)circlip, outer (29mm)pin, snap (9mm)oil seal (12x22x7) (arai)bolt-washer (6x25)
