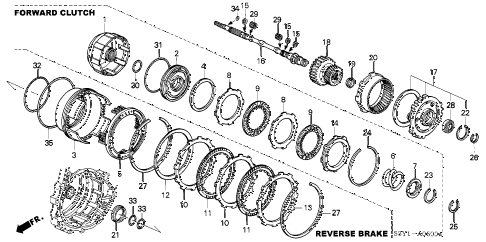

2005 insight DX 3 DOOR CVT AT INPUT SHAFT - FORWARD CLUTCH diagram
Back to Top
guide, forward clutchpiston, low clutchpiston, reverse brakespring, second clutch diskspring, reverse returnspring, clutch returnseat, clutch springplate, clutch (110mm)plate, clutch (110mm)disk, clutchdisk, clutchplate, reverse brakeplate, reverse brakedisk, reverse brakedisk, reverse brakespring, reverse brake diskplate, reverse brake end (1) (3.6mm)plate, reverse brake end (3.7mm) (a)plate, reverse brake end (2) (3.8mm)plate, reverse brake end (3.9mm) (b)plate, reverse brake end (3) (4.0mm)plate, reverse brake end (4.1mm) (c)plate, reverse brake end (4) (4.2mm)plate, reverse brake end (4.3mm) (d)plate, reverse brake end (5) (4.4mm)plate, reverse brake end (4.5mm) (e)plate, reverse brake end (6) (4.6mm)plate, reverse brake end (4.7mm) (f)plate, reverse brake end (7) (4.8mm)plate, reverse brake end (8) (5.0mm)plate, clutch end (15) (3.5mm)plate, clutch end (16) (3.6mm)plate, clutch end (17) (3.7mm)plate, clutch end (18) (3.8mm)plate, clutch end (19) (3.9mm)plate, clutch end (20) (4.0mm)plate, clutch end (21) (4.1mm)plate, clutch end (22) (4.2mm)plate, clutch end (23) (4.3mm)plate, clutch end (24) (4.4mm)plate, clutch end (25) (4.5mm)plate, clutch end (26) (4.6mm)plate, clutch end (27) (4.7mm)plate, clutch end (14) (3.4mm)ring, sealring, sealring, sealshaft, inputgear, planetarygear, suncollar, distance (25mm)gear, ringretainer, circlipcirclip (inner) (37mm)circlip (outer) (40mm)ring, snap (119mm)circlip, outer (35mm)circlip, outer (25mm)circlip, inner (150mm)circlip, inner (150mm)bearing, ball (6805)bearing, needle (20x24x17)bearing, needle (20x24x17)o-ring (39.8x2.2) (arai)o-ring (104x2.2) (nok)o-ring (86.6x2.3) (nok)o-ring (31.2x1.9) (arai)o-ring (31.2x1.9) (arai)ring, sealo-ring (135x2.5) (arai)
