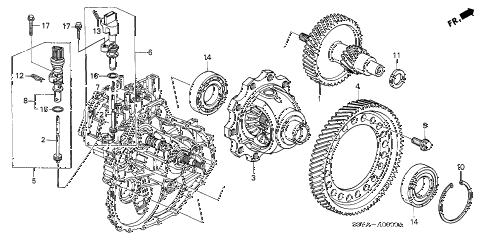

2005 insight DX 3 DOOR CVT AT DIFFERENTIAL - SPEED SENSOR diagram
Back to Top
shaft, secondary geargear, speedometer (22t)gear, speedometer (22t)differential assy.differential assy.gear, final drivensensor assy., speed (denso)sensor assy., speed (matsushita)joint, speed sensor (matsushita)holder, speed sensor (denso)bolt, flange (10mm)ring 1, set (66mm) (1.5)ring 2, set (66mm) (1.6) (red)ring 3, set (66mm) (1.7) (yellow)ring 4, set (66mm) (1.8) (green)ring 5, set (66mm) (1.9) (blue)ring 6, set (66mm) (2.0) (white)shim a (25x35) (2.8)shim b (25x35) (2.9)shim c (25x35) (3.0)shim d (25x35) (3.1)shim e (25x35) (3.2)shim f (25x35) (3.3)shim g (25x35) (3.4)shim h (25x35) (3.5)shim i (25x35) (3.6)shim j (25x35) (3.7)shim k (25x35) (3.8)clip, speedometer gearclip, speedometer gearbearing, sealed ball (35x66x15)bearing, sealed ball (35x66x15)o-ringo-ring (23.5x2)bolt, flange (8x30)bolt, flange (8x30)
