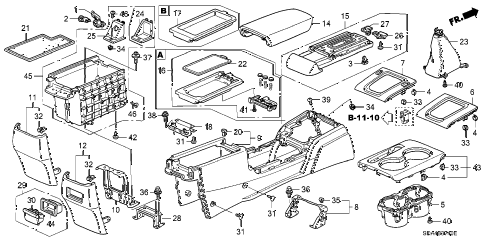

2006 accord LX 4 DOOR 5MT CONSOLE diagram

  • 001

    cap assy.

    Part Number: 39620-SZ3-003

    '' ''


    KA - US - 49 State Spec

    • $10.60

  • 001

    cap assy.

    Part Number: 39631-S5A-A01

    '' ''


    KA - US - 49 State Spec

    • $16.42

  • 001

    cap assy.

    Part Number: 39620-SZ3-003

    '' ''


    KA - US - 49 State Spec

    • $10.60

  • 001

    cap assy.

    Part Number: 39631-S5A-A01

    '' ''


    KA - US - 49 State Spec

    • $16.42

  • 002

    socket assy.

    Part Number: 39624-SZ3-L01

    '' ''


    KA - US - 49 State Spec

    • $16.35

  • 002

    socket assy.

    Part Number: 39632-S5A-A01

    '' ''


    KA - US - 49 State Spec

    • $42.08

  • 002

    socket assy.

    Part Number: 39624-SZ3-L01

    '' ''


    KA - US - 49 State Spec

    • $16.35

  • 002

    socket assy.

    Part Number: 39632-S5A-A01

    '' ''


    KA - US - 49 State Spec

    • $42.08

  • 003

    stopper, console lock

    Part Number: 66418-SD4-900

    '' ''


    KA - US - 49 State Spec

    • $3.58

  • 004

    clip, snap fitting

    Part Number: 77205-S0X-A01

    '' ''


    KA - US - 49 State Spec

    • $5.32

  • 005

    holder assy., cup *nh1l*

    Part Number: 77230-SDA-A01ZA
    (BLACK)

    '' ''


    KA - US - 49 State Spec

    • $25.73

  • 006

    panel, fr. *nh482l*

    Part Number: 77294-SDA-A50ZA
    (BLACK METALLIC)

    '' ''


    KA - US - 49 State Spec

    • $168.83

  • 008

    bracket, fr. center console

    Part Number: 77296-SDA-A00ZZ

    '' ''


    KA - US - 49 State Spec

    • $94.58

  • 008

    bracket, fr. center console

    Part Number: 77296-SEA-J00ZZ

    '' ''


    KA - US - 49 State Spec

    • $27.35

  • 008

    bracket, fr. center console

    Part Number: 77296-SDA-A00ZZ

    '' ''


    KA - US - 49 State Spec

    • $94.58

  • 008

    bracket, fr. center console

    Part Number: 77296-SEA-J00ZZ

    '' ''


    KA - US - 49 State Spec

    • $27.35

  • 009

    console, center *nh167l*

    Part Number: 83401-SDA-A51ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $293.83

  • 009

    console, center *nh361l*

    Part Number: 83401-SDA-A51ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $293.83

  • 009

    console, center *yr239l*

    Part Number: 83401-SDA-A51ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $293.83

  • 009

    console, center *nh167l*

    Part Number: 83401-SDA-A51ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $293.83

  • 009

    console, center *nh361l*

    Part Number: 83401-SDA-A51ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $293.83

  • 009

    console, center *yr239l*

    Part Number: 83401-SDA-A51ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $293.83

  • 010

    bracket, center console

    Part Number: 83402-SDA-A01ZZ

    '' ''


    KA - US - 49 State Spec

    • $446.42

  • 011

    garnish, center console *nh167l*

    Part Number: 83403-SDA-A01ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $134.60

  • 011

    garnish, center console *nh361l*

    Part Number: 83403-SDA-A01ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $134.60

  • 011

    garnish, center console *yr239l*

    Part Number: 83403-SDA-A01ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $134.60

  • 011

    garnish, center console *nh167l*

    Part Number: 83403-SDA-A01ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $134.60

  • 011

    garnish, center console *nh361l*

    Part Number: 83403-SDA-A01ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $134.60

  • 011

    garnish, center console *yr239l*

    Part Number: 83403-SDA-A01ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $134.60

  • 014

    armrest, console *nh167l*

    Part Number: 83406-SDA-A02ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $246.30

  • 014

    armrest, console *nh361l*

    Part Number: 83406-SDA-A02ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $246.30

  • 014

    armrest, console *yr239l*

    Part Number: 83406-SDA-A02ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $246.30

  • 014

    armrest, console *nh167l*

    Part Number: 83406-SDA-A02ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $246.30

  • 014

    armrest, console *nh361l*

    Part Number: 83406-SDA-A02ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $246.30

  • 014

    armrest, console *yr239l*

    Part Number: 83406-SDA-A02ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $246.30

  • 015

    base, console armrest *nh167l*

    Part Number: 83407-SDA-A01ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $568.50

  • 015

    base, console armrest *nh361l*

    Part Number: 83407-SDA-A01ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $568.50

  • 015

    base, console armrest *yr239l*

    Part Number: 83407-SDA-A01ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $568.50

  • 015

    base, console armrest *nh167l*

    Part Number: 83407-SDA-A01ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $568.50

  • 015

    base, console armrest *nh361l*

    Part Number: 83407-SDA-A01ZB
    (GRAY)

    '' ''


    KA - US - 49 State Spec

    • $568.50

  • 015

    base, console armrest *yr239l*

    Part Number: 83407-SDA-A01ZC
    (IVORY)

    '' ''


    KA - US - 49 State Spec

    • $568.50

  • 016

    tray, console *nh1l*

    Part Number: 83408-SDA-A01ZA
    (BLACK)

    '' ''


    KA - US - 49 State Spec

    • $80.52

  • 018

    hinge, armrest

    Part Number: 83409-SDA-A02

    '' ''


    KA - US - 49 State Spec

    • $31.63

  • 020

    stopper, armrest

    Part Number: 83412-SDA-A01

    '' ''


    KA - US - 49 State Spec

    • $3.33

  • 021

    mat, console box

    Part Number: 83413-SDA-A01

    '' ''


    KA - US - 49 State Spec

    • $231.53

  • 022

    mat assy., tray

    Part Number: 83414-SDA-A01

    '' ''


    KA - US - 49 State Spec

    • $16.12

  • 023

    boot, change lever *nh167l*

    Part Number: 83415-SDA-A01ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $39.68

  • 025

    garnish, accessory *nh1l*

    Part Number: 83417-SDA-A11ZA
    (BLACK)

    '' ''


    KA - US - 49 State Spec

    • $8.32

  • 026

    lock, armrest

    Part Number: 83418-SDA-A01

    '' ''


    KA - US - 49 State Spec

    • $10.28

  • 027

    lock, tray

    Part Number: 83419-SDA-A01

    '' ''


    KA - US - 49 State Spec

    • $10.07

  • 028

    bracket, rr. center console

    Part Number: 83425-SDA-A00ZZ

    '' ''


    KA - US - 49 State Spec

    • $25.03

  • 028

    bracket, rr. center console

    Part Number: 83425-SFY-000ZZ

    '' ''


    KA - US - 49 State Spec

    • $16.23

  • 028

    bracket, rr. center console

    Part Number: 83425-SDA-A00ZZ

    '' ''


    KA - US - 49 State Spec

    • $25.03

  • 028

    bracket, rr. center console

    Part Number: 83425-SFY-000ZZ

    '' ''


    KA - US - 49 State Spec

    • $16.23

  • 031

    screw, tapping (4x16) (po)

    Part Number: 90144-SP0-000

    '' ''


    KA - US - 49 State Spec

    • $1.87

  • 032

    clip, snap fitting (po)(natural)

    Part Number: 90666-SDA-A01

    '' ''


    KA - US - 49 State Spec

    • $0.65

  • 033

    clip, snap fitting

    Part Number: 90666-S84-A01

    '' ''


    KA - US - 49 State Spec

    • $0.52

  • 034

    grommet, screw (4mm)

    Part Number: 91640-SM4-003

    '' ''


    KA - US - 49 State Spec

    • $2.85

  • 035

    grommet, screw (4mm)

    Part Number: 91641-SM4-003

    '' ''


    KA - US - 49 State Spec

    • $2.85

  • 036

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    '' ''


    KA - US - 49 State Spec

    • $1.33

  • 037

    screw-washer (5x14)

    Part Number: 93894-05014-08

    '' ''


    KA - US - 49 State Spec

    • $0.72

  • 038

    screw-washer (5x16)

    Part Number: 93894-05016-07

    '' ''


    KA - US - 49 State Spec

    • $0.83

  • 039

    screw, tapping (4x16)

    Part Number: 93903-14480

    '' ''


    KA - US - 49 State Spec

    • $0.65

  • 040

    screw, tapping (3x12)

    Part Number: 93903-22320

    '' ''


    KA - US - 49 State Spec

    • $0.43

  • 041

    screw, tapping (3x12)

    Part Number: 93903-22380

    '' ''


    KA - US - 49 State Spec

    • $0.65

  • 042

    screw, tapping (4x12)

    Part Number: 93913-24220

    '' ''


    KA - US - 49 State Spec

    • $0.65

  • 043

    panel, rr. *nh482l*

    Part Number: 83416-SDA-A11ZA
    (BLACK METALLIC)

    '' ''


    KA - US - 49 State Spec

    • $122.72

  • 045

    box, console *nh1l*

    Part Number: 83435-SDA-A10ZA
    (BLACK)

    '' ''


    KA - US - 49 State Spec

    • $298.00

  • 046

    screw, tapping (4x16) (po)

    Part Number: 90144-SDA-A01

    '' ''


    KA - US - 49 State Spec

    • $1.48
