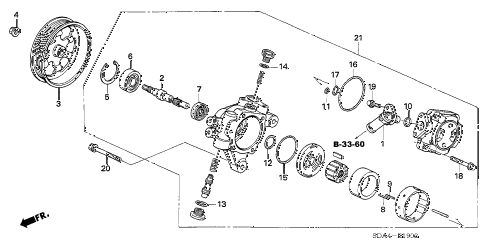

View large diagramHide diagramView diagramView printable catalog
  • 001

    joint, inlet

    • Part Number: 56123-RNA-A02

    '' '


    KA - US - 49 State Spec

    • $5.65

  • 002

    shaft, power steering pump drive

    • Part Number: 56141-PNC-003

    '' '


    KA - US - 49 State Spec

    • $46.95

  • 003

    pulley, power steering pump

    • Part Number: 56483-PNC-004

    '' '


    KA - US - 49 State Spec

    • $39.28

  • 004

    nut, power steering pulley

    • Part Number: 90305-PAA-A01

    '' '


    KA - US - 49 State Spec

    • $1.92

  • 005

    circlip, inner (40mm)

    • Part Number: 90693-P2A-003

    '' '


    KA - US - 49 State Spec

    • $4.47

  • 005

    circlip, inner (40mm)

    • Part Number: 90693-PAA-A01

    '' '


    KA - US - 49 State Spec

    • $1.48

  • 005

    circlip, inner (40mm)

    • Part Number: 90693-P2A-003

    '' '


    KA - US - 49 State Spec

    • $4.47

  • 005

    circlip, inner (40mm)

    • Part Number: 90693-PAA-A01

    '' '


    KA - US - 49 State Spec

    • $1.48

  • 006

    bearing, radial ball (17x40x12)

    • Part Number: 91048-P2A-003

    '' '


    KA - US - 49 State Spec

    • $13.87

  • 007

    seal, power steering pump

    • Part Number: 91249-PNC-003

    '' '


    KA - US - 49 State Spec

    • $4.67

  • 008

    seal, rubber

    • Part Number: 91343-PNC-003

    '' '


    KA - US - 49 State Spec

    • $2.33

  • 009

    seal, slipper

    • Part Number: 91344-PNC-003

    '' '


    KA - US - 49 State Spec

    • $2.33

  • 010

    o-ring (13.0x1.9)

    • Part Number: 91345-RDA-A01

    '' '


    KA - US - 49 State Spec

    • $0.72

  • 011

    o-ring (13.0x1.9)

    • Part Number: 91345-RJL-003

    '' '


    KA - US - 49 State Spec

    • $0.87

  • 012

    o-ring (23.8x2.4)

    • Part Number: 91346-PLA-003

    '' '


    KA - US - 49 State Spec

    • $2.10

  • 013

    o-ring (16.7x1.8)

    • Part Number: 91347-PAA-A01

    '' '


    KA - US - 49 State Spec

    • $0.80

  • 014

    o-ring (12.7x1.8)

    • Part Number: 91347-PLA-003

    '' '


    KA - US - 49 State Spec

    • $1.42

  • 015

    o-ring (51.0x2.4)

    • Part Number: 91348-P2A-003

    '' '


    KA - US - 49 State Spec

    • $1.12

  • 016

    seal, pump cover

    • Part Number: 91349-PNC-J01

    '' '


    KA - US - 49 State Spec

    • $4.23

  • 017

    seal b, pump cover

    • Part Number: 91349-PNC-003

    '' '


    KA - US - 49 State Spec

    • $4.23

  • 018

    bolt, flange (8x35)

    • Part Number: 91350-PLA-003

    '' '


    KA - US - 49 State Spec

    • $2.18

  • 019

    bolt, flange (6x20)

    • Part Number: 91350-P8C-A01

    '' '


    KA - US - 49 State Spec

    • $1.23

  • 020

    bolt, flange (8x45)

    • Part Number: 95701-08045-08

    '' '


    KA - US - 49 State Spec

    • $1.28

  • 021

    p/s pump, core id (raa-a0) (rmd)(american showa)

    • Part Number: 06561-RAA-505RM

    '' '


    KA - US - 49 State Spec

    • $305.22

  • 021

    pump sub-assy., power steering

    • Part Number: 56110-RAA-A03

    '' '


    KA - US - 49 State Spec

    • $418.77

  • 021

    p/s pump, core id (raa-a0) (rmd)(american showa)

    • Part Number: 06561-RAA-505RM

    '' '


    KA - US - 49 State Spec

    • $305.22

  • 021

    pump sub-assy., power steering

    • Part Number: 56110-RAA-A03

    '' '


    KA - US - 49 State Spec

    • $418.77
