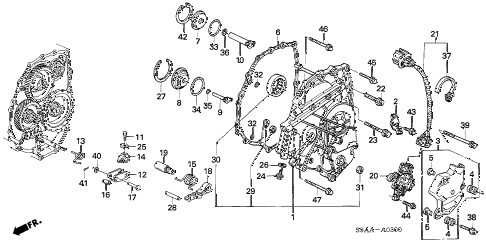

2006 cr-v EX(2WD) 5 DOOR 5AT LEFT SIDE COVER diagram
Back to Top
cover, l. sidecover, l. sidestay e, harnesscover, position sensorcover, position sensorrubber, position sensor coverrubber, position sensor covercollar, position sensor covercollar, position sensor covergasket, l. side coverguide a, feed pipeguide a, feed pipepipe b, feedpipe b, feedbolt, shaft fork settinglever, parking brakespring, parking brakestopper, parking brake (1)stopper, parking brake (2)stopper, parking brake (3)spring, parking pawlroller, parking brakepin, roller (6mm)pawl, parking brakeshaft, parkingsensor assy., positionharness, position sensorbolt, special (8x30)bolt, special (8x38)bolt, sealing (8mm)washer, lock (6mm)gasket (8mm)circlip b (inner) (47mm)pin, dowel (8x44)bearing, ball (9x20x6)bearing, needle (32x55x18.5)oil seal (9x18x7) (arai)o-ring (7.7x2.3) (arai)o-ring (7.7x2.3) (arai)o-ring (34x1.9) (arai)o-ring (40x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (11x1.9) (nok)clip a, harness band (129.4mm)(dark gray)bolt-washer (6x25)bolt-washer (6x55)washer, plain (6mm)pin, split (1.6x12)circlip, inner (38mm)bolt, flange (6x12)bolt, flange (6x18)bolt, flange (6x25)bolt, flange (6x35)bolt, flange (6x45)
