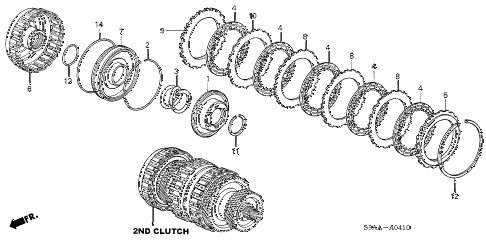

2006 cr-v EX(2WD) 5 DOOR 5AT CLUTCH (SECOND) diagram
Back to Top
retainer, return springspring, clutch wavespring, clutch return (f.c.c.)disk, clutchdisk, clutchdisk, clutchdisk, clutchdisk, clutchplate, clutch end (1) (2.6mm)plate, clutch end (2) (2.7mm)plate, clutch end (3) (2.8mm)plate, clutch end (4) (2.9mm)plate, clutch end (5) (3.0mm)plate, clutch end (6) (3.1mm)plate, clutch end (7) (3.2mm)plate, clutch end (8) (3.3mm)plate, clutch end (9) (3.4mm)guide, second clutchpiston, second clutchplate, clutch wave (2.0mm)plate, clutch wave (2.0mm)plate, clutch wave (2.0mm)plate, clutch (4.0mm)plate, clutch (2.0mm)circlip (outer) (43mm)ring, snap (129mm)o-ring (39.8x2.2) (arai)o-ring (114x2.2) (nok)
