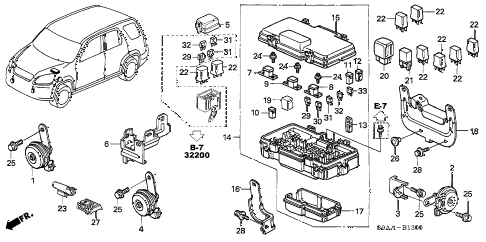

2006 cr-v EX(2WD) 5 DOOR 5AT CONTROL UNIT (ENGINE ROOM) diagram
Back to Top
horn assy (low)horn assy. (high)cover, multi relay boxbracket, sub-fuse boxfuse, block (30a)fuse, block (50a)fuse, block (100a)fuse, block (30a)fuse, block (40a)fuse, block (20a)puller, mini fuse (sumitomo)box assy., relaycover (upper)bracket a, relay boxcover (lower)bracket b, relay boxdetector unit, electronic loadrelay assy., power (4p no 305)(056700-9260) (denso)relay assy., power (4p) (056700-7250) (denso)relay assy., power (4p) (rc-2225) (black) (mitsuba)relay assy., power (4p) (rc-2226) (brown) (mitsuba)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (matsushita)relay assy., power (4p) (micro iso) (omron)relay assy., power (4p) (micro iso) (omron)relay assy., power (4p) (micro iso) (omron)relay assy., power (4p) (micro iso) (omron)relay assy., power (4p) (micro iso) (omron)relay assy., power (4p) (micro iso) (omron)relay assy., power (4p) (micro iso) (omron)relay assy., power (4p) (micro iso) (omron)sensor assy., ambientscrew-washer (5x12)screw-washer (5x12)screw-washer (5x12)bolt, ground (8x16)bolt, ground (8x16)bolt, ground (8x16)bolt, ground (8x16)clip, bracketclip, connectorbolt-washer (6x16)bolt-washer (6x16)fuse, mini (7.5a)fuse, mini (7.5a)fuse, mini (10a)fuse, mini (15a)fuse, mini (15a)fuse, mini (15a)fuse, mini (20a)fuse, mini (20a)fuse, mini (30a)
