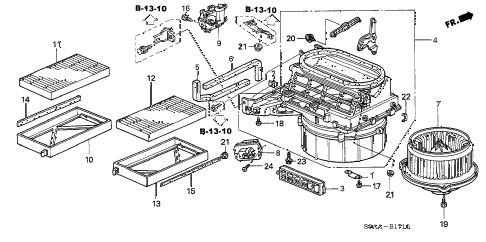

2006 cr-v EX(2WD) 5 DOOR 5AT HEATER BLOWER diagram
Back to Top
bracket, cover (lower)nut, holderlid, blowerblower sub-assy.seal, blower (outer) (b)seal, blower (outer) (a)motor assy., fantransistor, powermotor assy., fresh/recirculatingframe, filter (a)frame, filter (b)seal, blower platescrew, tapping (5x12)screw, tapping (4x12)screw, tapping (4x16)screw, tapping (5x16)screw-washer (4x16)nut-washer (6mm) (paint cutting)nut-washer (6mm) (paint cutting)nut-washer (6mm) (paint cutting)clamp, casebolt-washer (6x20)screw, tapping (4x14) (po)
