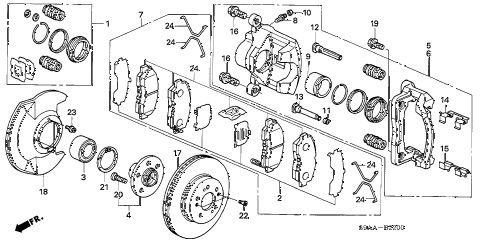

2006 cr-v EX(2WD) 5 DOOR 5AT FRONT BRAKE diagram
Back to Top
caliper set, fr.bearing assy., fr. hub (nsk)hub assy., fr.caliper sub-assy., r.caliper sub-assy., r. fr. (rmd)caliper sub-assy., l.caliper sub-assy., l. fr. (rmd)pad set, fr.screw, bleederpistoncap, bleeder screwbushpin apin bclip, padclip, padboltboltdisk, fr. brake (16")splash guard, fr. brake (16")bolt, caliper mounting (12x21)bolt, wheel (rocknel fastener)circlip (inner) (84mm)screw, flat (6x14)screw-washer (5x12)
