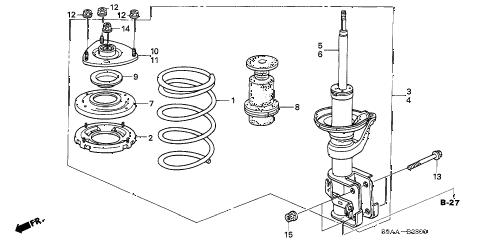

2006 cr-v EX(2WD) 5 DOOR 5AT FRONT SHOCK ABSORBER diagram
Back to Top
spring,frontrubber, fr. spring mountingshock absorber assy., r. fr.shock absorber assy., l. fr.shock absorber unit, r. fr.shock absorber unit, l. fr.seat, fr. spring (upper)rubber, fr. bump stopbearing, fr. shock absorber mountmount, r. fr. shock absorbermount, l. fr. shock absorbernut, flange (10mm)nut, flange (10mm)nut, flange (10mm)bolt, flange (16x62)bolt, flange (16x62) (service)nut, self-lock (12mm) (nylon)nut, flange (16mm)
