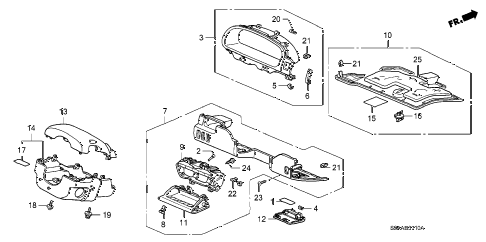

2006 cr-v EX(2WD) 5 DOOR 5AT INSTRUMENT PANEL GARNISH (DRIVER SIDE) diagram
Back to Top
label, fusestopper, glove box lidvisor assy., meter *nh167l*visor assy., meter *yr248l*clip, snap fittinglid, escutcheon *nh167l*lid, escutcheon *yr248l*seal, at position *nh1l*cover assy., driver instrument(lower) *nh167l*cover assy., driver instrument(lower) *yr239l*rubber, stoppercover, driver pocket *nh167l*cover, driver pocket *yr239l*cover assy., driver (lower) *nh1l*pocket, driver *nh167l*pocket, driver *yr239l*lid, fuse *nh167l*lid, fuse *yr239l*cover, column (upper) *nh167l*cover, column (upper) *yr248l*cover assy., column (lower) *nh167l*cover assy., column (lower) *yr248l*label, steering column caution(english/french)lock, lid *nh1l*label, connector location (obd-2)screw, tapping (4x16) (it)bolt-washer (5x16)clip, snap fittingclip, snap fittingclip, snap fittingclip, snap fittingclip, coin pocketscrew, tapping (4x16) (po)screw, tapping (4x12)insulator, driver (lower)
