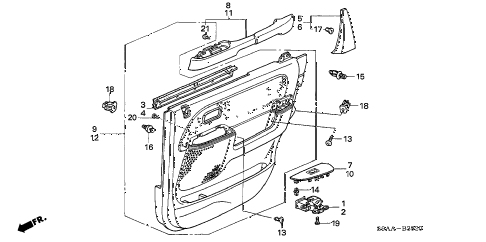

2006 cr-v EX(2WD) 5 DOOR 5AT REAR DOOR LINING diagram
Back to Top
sub-switch assy., r. power window *nh167l*sub-switch assy., l. power window *nh167l*weatherstrip, r. rr. door (inner)weatherstrip, l. rr. door (inner)garnish, r. rr. door quarter (inner) *nh167l*garnish, l. rr. door quarter (inner) *nh167l*panel, r. power window switch *nh581l*panel, r. power window switch *yr313l*armrest, r. rr. door *nh167l*armrest, r. rr. door *yr248l*lining, r. rr. door (typea)lining, r. rr. door (typef)panel, l. power window switch *nh581l*panel, l. power window switch *yr313l*armrest, l. rr. door *nh167l*armrest, l. rr. door *yr248l*lining, l. rr. door (typea)lining, l. rr. door (typef)screw, tapping (5x25)screw, tapping (5x25)clip, snap fitting (po)(natural)clip, cowl top *nh120l*clip, door lining (light blue)grommet, mirror garnishgrommet, screw (5mm 45 degree)grommet, screw (5mm 45 degree)screw, tapping (3x12)screw, tapping (4x10) (po)screw, tapping (4x16) (po)
