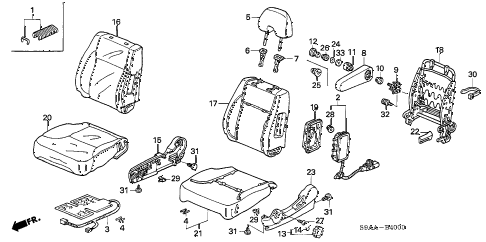

View large diagramHide diagramView diagramView printable catalog
  • 001

    c-clip set, trim fastener (30 pieces)

    • Part Number: 04810-SB3-000

    '


    KA - US - 49 State Spec

    • $6.37

  • 002

    module kit, l. side airbag *nh167l*

    • Part Number: 06788-S9A-A90ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $331.14

  • 002

    module kit, l. side airbag *yr239l*

    • Part Number: 06788-S9A-A90ZB

    (IVORY)

    '


    KA - US - 49 State Spec

    • $331.14

  • 004

    clip (h)

    • Part Number: 81138-S5A-G21

    '


    KA - US - 49 State Spec

    • $7.60

  • 005

    headrest assy., fr. *nh167l*

    • Part Number: 81140-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $152.33

  • 005

    headrest assy., fr. *yr314l*

    • Part Number: 81140-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $152.33

  • 006

    guide, headrest *yr239l*

    • Part Number: 81143-SM4-J01A6

    (IVORY)

    '


    KA - US - 49 State Spec

    • $17.65

  • 006

    guide, headrest *nh167l*

    • Part Number: 81143-SM4-J01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $17.65

  • 007

    guide, headrest lock *yr239l*

    • Part Number: 81144-S0A-J01YA

    (IVORY)

    '


    KA - US - 49 State Spec

    • $15.40

  • 007

    guide, headrest lock *nh167l*

    • Part Number: 81144-S0A-J01ZF

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $15.40

  • 008

    armrest assy., fr. seat *nh167l*

    • Part Number: 81180-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $208.70

  • 008

    armrest assy., fr. seat *yr314l*

    • Part Number: 81180-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $208.70

  • 009

    pin, armrest

    • Part Number: 81182-S5A-003

    '


    KA - US - 49 State Spec

    • $20.10

  • 010

    bush, armrest

    • Part Number: 81184-SX0-000

    '


    KA - US - 49 State Spec

    • $3.50

  • 011

    bush, armrest (b)

    • Part Number: 81184-S5A-000

    '


    KA - US - 49 State Spec

    • $3.57

  • 012

    garnish, armrest *nh167l*

    • Part Number: 81187-S9A-003ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $2.57

  • 012

    garnish, armrest *yr239l*

    • Part Number: 81187-S9A-003ZC

    (IVORY)

    '


    KA - US - 49 State Spec

    • $2.57

  • 013

    handle, height *nh167l*

    • Part Number: 81221-S3N-J11ZF

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $20.62

  • 013

    handle, height *yr239l*

    • Part Number: 81221-S3N-J11ZN

    (IVORY)

    '


    KA - US - 49 State Spec

    • $20.62

  • 014

    clip, shaft (8mm)

    • Part Number: 81223-S04-000

    '


    KA - US - 49 State Spec

    • $3.90

  • 015

    cover, l. center *nh167l*

    • Part Number: 81515-S9A-J11ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $19.62

  • 015

    cover, l. center *yr239l*

    • Part Number: 81515-S9A-J11ZD

    (IVORY)

    '


    KA - US - 49 State Spec

    • $19.62

  • 016

    cover, l. fr. seat-back trim *nh167l* (side airbag)

    • Part Number: 81521-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $468.10

  • 016

    cover, l. fr. seat-back trim *yr314l* (side airbag)

    • Part Number: 81521-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $468.10

  • 017

    pad assy., l. fr. seat-back

    • Part Number: 81522-S9A-A12

    '


    KA - US - 49 State Spec

    • $380.10

  • 018

    frame, l. fr. seat-back

    • Part Number: 81526-S9A-J12

    '


    KA - US - 49 State Spec

    • $319.93

  • 019

    holder, l. module

    • Part Number: 81528-S9A-J41

    '


    KA - US - 49 State Spec

    • $19.77

  • 020

    cover, l. fr. seat cushion trim *nh167l*

    • Part Number: 81531-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $468.62

  • 020

    cover, l. fr. seat cushion trim *yr314l*

    • Part Number: 81531-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $468.62

  • 021

    pad assy., l. fr. seat cushion

    • Part Number: 81532-S9A-A01

    '


    KA - US - 49 State Spec

    • $174.03

  • 022

    knob, l. reclining *nh167l*

    • Part Number: 81631-S9A-003ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $7.38

  • 022

    knob, l. reclining *yr239l*

    • Part Number: 81631-S9A-003ZD

    (IVORY)

    '


    KA - US - 49 State Spec

    • $7.38

  • 023

    cover, l. reclining *nh167l*

    • Part Number: 81638-S5A-J11ZC

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $513.25

  • 023

    cover, l. reclining *yr239l*

    • Part Number: 81638-S5A-J11ZG

    (IVORY)

    '


    KA - US - 49 State Spec

    • $513.25

  • 024

    washer, wave (10mm)

    • Part Number: 90123-SX0-000

    '


    KA - US - 49 State Spec

    • $1.72

  • 026

    nut, u (10mm)

    • Part Number: 90124-S47-000

    '


    KA - US - 49 State Spec

    • $2.20

  • 027

    screw, tapping (5x10)

    • Part Number: 90134-SE3-003

    '


    KA - US - 49 State Spec

    • $2.52

  • 028

    nut-washer (6mm)

    • Part Number: 90321-SP0-A80

    '


    KA - US - 49 State Spec

    • $0.40

  • 029

    clip, garnish (kato)

    • Part Number: 90610-SR3-003

    '


    KA - US - 49 State Spec

    • $3.88

  • 030

    band, oil hose

    • Part Number: 90656-PB1-003

    '


    KA - US - 49 State Spec

    • $3.08

  • 031

    clip, trim (5mm) *yr239l*

    • Part Number: 90666-SA7-003C8

    (IVORY)

    '


    KA - US - 49 State Spec

    • $2.33

  • 031

    clip, trim (5mm) *nh167l*

    • Part Number: 90666-SA7-003YM

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $3.63

  • 032

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 033

    washer, plain (10mm)

    • Part Number: 94101-10800

    '


    KA - US - 49 State Spec

    • $1.02
