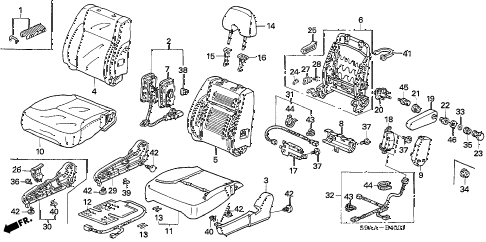

View large diagramHide diagramView diagramView printable catalog
  • 001

    c-clip set, trim fastener (30 pieces)

    • Part Number: 04810-SB3-000

    '


    KA - US - 49 State Spec

    • $6.37

  • 002

    module kit, r. side airbag *nh167l*

    • Part Number: 06783-S9A-A90ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $331.14

  • 002

    module kit, r. side airbag *yr239l*

    • Part Number: 06783-S9A-A90ZB

    (IVORY)

    '


    KA - US - 49 State Spec

    • $331.14

  • 003

    cover, r. center *nh167l*

    • Part Number: 81115-S9A-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $19.62

  • 003

    cover, r. center *yr239l*

    • Part Number: 81115-S9A-A01ZB

    (IVORY)

    '


    KA - US - 49 State Spec

    • $19.62

  • 004

    cover, r. fr. seat-back trim *nh167l* (side airbag)

    • Part Number: 81121-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $468.10

  • 004

    cover, r. fr. seat-back trim *yr314l* (side airbag)

    • Part Number: 81121-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $468.10

  • 005

    pad assy., r. fr. seat-back (with opds sensor)

    • Part Number: 81122-S9A-A12

    '


    KA - US - 49 State Spec

    • $380.10

  • 006

    frame, r. fr. seat-back

    • Part Number: 81126-S9A-A51

    '


    KA - US - 49 State Spec

    • $319.93

  • 007

    holder, r. module

    • Part Number: 81128-S9A-J41

    '


    KA - US - 49 State Spec

    • $19.77

  • 009

    cover, opds

    • Part Number: 81129-S9A-A11

    '


    KA - US - 49 State Spec

    • $7.38

  • 010

    cover, r. fr. seat cushion trim *nh167l*

    • Part Number: 81131-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $468.62

  • 010

    cover, r. fr. seat cushion trim *yr314l*

    • Part Number: 81131-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $468.62

  • 011

    pad assy., r. fr. seat cushion

    • Part Number: 81132-S9A-A11

    '


    KA - US - 49 State Spec

    • $174.03

  • 013

    clip (h)

    • Part Number: 81138-S5A-G21

    '


    KA - US - 49 State Spec

    • $7.60

  • 014

    headrest assy., fr. *nh167l*

    • Part Number: 81140-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $152.33

  • 014

    headrest assy., fr. *yr314l*

    • Part Number: 81140-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $152.33

  • 015

    guide, headrest *yr239l*

    • Part Number: 81143-SM4-J01A6

    (IVORY)

    '


    KA - US - 49 State Spec

    • $17.65

  • 015

    guide, headrest *nh167l*

    • Part Number: 81143-SM4-J01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $17.65

  • 016

    guide, headrest lock *yr239l*

    • Part Number: 81144-S0A-J01YA

    (IVORY)

    '


    KA - US - 49 State Spec

    • $15.40

  • 016

    guide, headrest lock *nh167l*

    • Part Number: 81144-S0A-J01ZF

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $15.40

  • 018

    opds unit

    • Part Number: 81161-S9A-A51

    '


    KA - US - 49 State Spec

    • $563.32

  • 019

    armrest assy., fr. seat *nh167l*

    • Part Number: 81180-S9A-A12ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $208.70

  • 019

    armrest assy., fr. seat *yr314l*

    • Part Number: 81180-S9A-A12ZC

    (MEDIUM IVORY)

    '


    KA - US - 49 State Spec

    • $208.70

  • 020

    pin, armrest

    • Part Number: 81182-S5A-003

    '


    KA - US - 49 State Spec

    • $20.10

  • 021

    bush, armrest

    • Part Number: 81184-SX0-000

    '


    KA - US - 49 State Spec

    • $3.50

  • 022

    bush, armrest (b)

    • Part Number: 81184-S5A-000

    '


    KA - US - 49 State Spec

    • $3.57

  • 023

    garnish, armrest *nh167l*

    • Part Number: 81187-S9A-003ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $2.57

  • 023

    garnish, armrest *yr239l*

    • Part Number: 81187-S9A-003ZC

    (IVORY)

    '


    KA - US - 49 State Spec

    • $2.57

  • 024

    holder, rod

    • Part Number: 81219-SDA-L01

    '


    KA - US - 49 State Spec

    • $9.18

  • 025

    knob, r. reclining *nh167l*

    • Part Number: 81231-S9A-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $7.38

  • 025

    knob, r. reclining *yr239l*

    • Part Number: 81231-S9A-A01ZB

    (IVORY)

    '


    KA - US - 49 State Spec

    • $7.38

  • 026

    cover, r. anchor (outer) *nh167l*

    • Part Number: 81234-S9A-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $10.03

  • 026

    cover, r. anchor (outer) *yr239l*

    • Part Number: 81234-S9A-A01ZB

    (IVORY)

    '


    KA - US - 49 State Spec

    • $10.03

  • 027

    bracket, r.

    • Part Number: 81236-SDA-L01

    '


    KA - US - 49 State Spec

    • $6.18

  • 028

    bolt

    • Part Number: 81237-SDA-L01

    '


    KA - US - 49 State Spec

    • $5.70

  • 030

    cover, r. reclining *nh167l*

    • Part Number: 81238-S9A-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $18.80

  • 030

    cover, r. reclining *yr239l*

    • Part Number: 81238-S9A-A01ZC

    (IVORY)

    '


    KA - US - 49 State Spec

    • $18.80

  • 032

    cord, seat (a)

    • Part Number: 81312-S9A-A50

    '


    KA - US - 49 State Spec

    • $50.60

  • 033

    washer, wave (10mm)

    • Part Number: 90123-SX0-000

    '


    KA - US - 49 State Spec

    • $1.72

  • 035

    nut, u (10mm)

    • Part Number: 90124-S47-000

    '


    KA - US - 49 State Spec

    • $2.20

  • 036

    screw, tapping (5x10)

    • Part Number: 90134-SE3-003

    '


    KA - US - 49 State Spec

    • $2.52

  • 037

    screw, truss (6x12)

    • Part Number: 90160-S5A-003

    '


    KA - US - 49 State Spec

    • $4.30

  • 038

    nut-washer (6mm)

    • Part Number: 90321-SP0-A80

    '


    KA - US - 49 State Spec

    • $0.40

  • 040

    clip, garnish

    • Part Number: 90610-S10-003

    '


    KA - US - 49 State Spec

    • $2.03

  • 041

    band, oil hose

    • Part Number: 90656-PB1-003

    '


    KA - US - 49 State Spec

    • $3.08

  • 042

    clip, trim (5mm) *yr239l*

    • Part Number: 90666-SA7-003C8

    (IVORY)

    '


    KA - US - 49 State Spec

    • $2.33

  • 042

    clip, trim (5mm) *nh167l*

    • Part Number: 90666-SA7-003YM

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $3.63

  • 043

    clip, connector (natural)

    • Part Number: 91533-S04-003

    '


    KA - US - 49 State Spec

    • $2.25

  • 044

    clip, harness band (96.9mm) (natural)

    • Part Number: 91540-S0A-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 045

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 046

    washer, plain (10mm)

    • Part Number: 94101-10800

    '


    KA - US - 49 State Spec

    • $1.02
