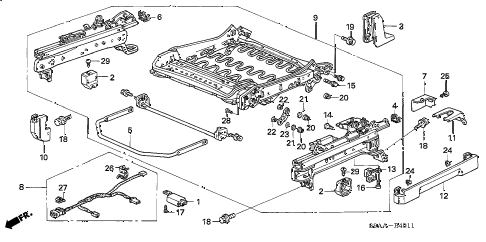

View large diagramHide diagramView diagramView printable catalog
  • 002

    cover, connect bracket

    • Part Number: 81137-S9A-003

    '


    KA - US - 49 State Spec

    • $2.47

  • 003

    cover, rr. foot (inner) *nh167l*

    • Part Number: 81196-S9A-J11ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $9.08

  • 003

    cover, rr. foot (inner) *yr239l*

    • Part Number: 81196-S9A-J11ZC

    (IVORY)

    '


    KA - US - 49 State Spec

    • $9.08

  • 004

    cap, slide adjuster end (upper)

    • Part Number: 81262-S5A-J01

    '


    KA - US - 49 State Spec

    • $9.38

  • 005

    lever

    • Part Number: 81271-S9A-J01

    '


    KA - US - 49 State Spec

    • $22.00

  • 006

    cap, slide adjuster end (upper)

    • Part Number: 81272-S5A-J01

    '


    KA - US - 49 State Spec

    • $9.38

  • 007

    cover, sps *nh167l*

    • Part Number: 81283-S9A-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $12.85

  • 008

    cord, seat (a)

    • Part Number: 81312-S9A-A70

    '


    KA - US - 49 State Spec

    • $47.72

  • 009

    frame, l. fr. seat cushion

    • Part Number: 81536-S9A-A51

    '


    KA - US - 49 State Spec

    • $393.77

  • 010

    cover, fr. foot *nh167l*

    • Part Number: 81592-S9A-J11ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $7.73

  • 010

    cover, fr. foot *yr239l*

    • Part Number: 81592-S9A-J11ZC

    (IVORY)

    '


    KA - US - 49 State Spec

    • $7.73

  • 011

    cover, rr. foot (outer) *nh167l*

    • Part Number: 81595-S9A-J01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $5.15

  • 011

    cover, rr. foot (outer) *yr239l*

    • Part Number: 81595-S9A-J01ZC

    (IVORY)

    '


    KA - US - 49 State Spec

    • $5.15

  • 012

    cover, l. riser (outer) *nh167l*

    • Part Number: 81668-S9A-J01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $13.15

  • 012

    cover, l. riser (outer) *yr239l*

    • Part Number: 81668-S9A-J01ZD

    (IVORY)

    '


    KA - US - 49 State Spec

    • $13.15

  • 013

    sensor assy., seat position

    • Part Number: 81679-S0X-A01

    '


    KA - US - 49 State Spec

    • $52.60

  • 014

    bolt, strap set

    • Part Number: 82122-SJ8-013

    '


    KA - US - 49 State Spec

    • $1.92

  • 015

    bolt, flange (8x30)

    • Part Number: 90105-S3N-003

    '


    KA - US - 49 State Spec

    • $6.87

  • 016

    screw, torx (6x16)

    • Part Number: 90115-S0X-A01

    '


    KA - US - 49 State Spec

    • $2.40

  • 018

    bolt-washer (10x25)

    • Part Number: 90135-S7A-J50

    '


    KA - US - 49 State Spec

    • $2.87

  • 019

    bolt-washer (10x22)

    • Part Number: 90143-SR3-000

    '


    KA - US - 49 State Spec

    • $5.12

  • 020

    nut, flange

    • Part Number: 90303-S3N-003

    '


    KA - US - 49 State Spec

    • $2.92

  • 021

    washer a

    • Part Number: 90501-S3N-003

    '


    KA - US - 49 State Spec

    • $1.62

  • 022

    bush a

    • Part Number: 90502-S3N-013

    '


    KA - US - 49 State Spec

    • $5.33

  • 023

    spacer

    • Part Number: 90503-S3N-003

    '


    KA - US - 49 State Spec

    • $2.15

  • 024

    clip, garnish (kato)

    • Part Number: 90610-SR3-003

    '


    KA - US - 49 State Spec

    • $3.88

  • 025

    clip, trim (5mm) *yr239l*

    • Part Number: 90666-SA7-003C8

    (IVORY)

    '


    KA - US - 49 State Spec

    • $2.33

  • 025

    clip, trim (5mm) *nh167l*

    • Part Number: 90666-SA7-003YM

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $3.63

  • 026

    clip b, harness band (129.4mm)(dark brown)

    • Part Number: 91507-P01-003

    '


    KA - US - 49 State Spec

    • $3.90

  • 027

    clip, connector (natural)

    • Part Number: 91533-S04-003

    '


    KA - US - 49 State Spec

    • $2.25

  • 028

    screw, tapping (4x6)

    • Part Number: 93901-24020

    '


    KA - US - 49 State Spec

    • $0.55

  • 029

    screw, tapping (5x10)

    • Part Number: 93902-25180

    '


    KA - US - 49 State Spec

    • $0.52

Back to Top
