CLUTCH MASTER CYLINDER
View large diagramHide diagramView diagramView printable catalogTranslate

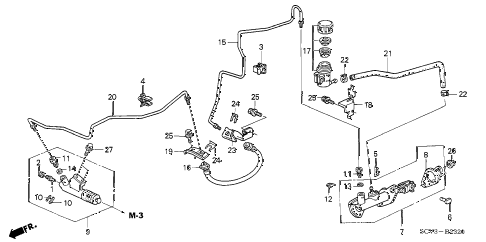

2006 element EX-P(2WD,SD AIR BAG 5 DOOR 5MT CLUTCH MASTER CYLINDER diagram

  • 001

    screw, bleeder

    Part Number: 43352-567-000

    ''


    KA - US - 49 State Spec

    • $6.13

  • 002

    cap, bleeder screw

    Part Number: 43353-SD5-003

    ''


    KA - US - 49 State Spec

    • $3.75

  • 003

    clip, brake pipe

    Part Number: 46391-SCV-A01

    ''


    KA - US - 49 State Spec

    • $1.38

  • 004

    clip d

    Part Number: 46392-SL0-003

    ''


    KA - US - 49 State Spec

    • $5.42

  • 005

    pin, lock (8mm)

    Part Number: 46911-S70-003

    ''


    KA - US - 49 State Spec

    • $2.58

  • 006

    pin, clutch pedal

    Part Number: 46912-S84-A00

    ''


    KA - US - 49 State Spec

    • $3.35

  • 007

    master cylinder assy., clutch

    Part Number: 46920-S7A-A03

    ''


    KA - US - 49 State Spec

    • $147.50

  • 008

    seal, master cylinder

    Part Number: 46928-S5A-A01

    ''


    KA - US - 49 State Spec

    • $4.47

  • 009

    cylinder assy., clutch slave

    Part Number: 46930-S7C-E02

    ''


    KA - US - 49 State Spec

    • $82.38

  • 010

    pin, spring

    Part Number: 46931-S5A-003

    ''


    KA - US - 49 State Spec

    • $1.05

  • 011

    connector, clutch master cylinder

    Part Number: 46941-S5A-003

    ''


    KA - US - 49 State Spec

    • $10.85

  • 012

    pin, snap

    Part Number: 46942-S5A-003

    ''


    KA - US - 49 State Spec

    • $3.48

  • 013

    seal, ring

    Part Number: 46943-S5A-003

    ''


    KA - US - 49 State Spec

    • $3.60

  • 014

    seal, ring

    Part Number: 46949-S5A-003

    ''


    KA - US - 49 State Spec

    • $1.98

  • 015

    pipe a, clutch

    Part Number: 46960-SCV-A02

    ''


    KA - US - 49 State Spec

    • $9.38

  • 016

    hose, clutch

    Part Number: 46961-S9A-A01

    ''


    KA - US - 49 State Spec

    • $43.70

  • 017

    tank assy., clutch fluid

    Part Number: 46965-S5A-013

    ''


    KA - US - 49 State Spec

    • $24.95

  • 018

    holder, tank

    Part Number: 46966-S9A-A01

    ''


    KA - US - 49 State Spec

    • $13.77

  • 019

    bracket b, clutch pipe

    Part Number: 46968-S7C-E01

    ''


    KA - US - 49 State Spec

    • $6.84

  • 020

    pipe b, clutch

    Part Number: 46970-SCV-A01

    ''


    KA - US - 49 State Spec

    • $11.80

  • 021

    tube, clutch fluid

    Part Number: 46971-SCV-A01

    ''


    KA - US - 49 State Spec

    • $11.00

  • 022

    clamp, tube (d12)

    Part Number: 46972-S6F-E01

    ''


    KA - US - 49 State Spec

    • $3.08

  • 023

    bracket a, clutch pipe

    Part Number: 46995-S7C-G01

    ''


    KA - US - 49 State Spec

    • $15.15

  • 024

    clip, brake hose

    Part Number: 90651-538-000

    ''


    KA - US - 49 State Spec

    • $4.77

  • 025

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 026

    nut, flange (8mm)

    Part Number: 94050-08080

    ''


    KA - US - 49 State Spec

    • $0.27

  • 027

    bolt, flange (8x25)

    Part Number: 95701-08025-08

    ''


    KA - US - 49 State Spec

    • $0.45
