FRONT FENDER
View large diagramHide diagramView diagramView printable catalogTranslate

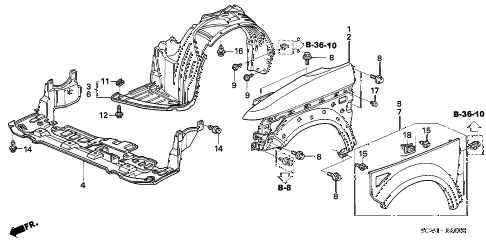

2006 element EX-P(2WD,SD AIR BAG 5 DOOR 5MT FRONT FENDER diagram

  • 001

    panel, r. fr. fender (dot)

    Part Number: 60211-SCV-A91ZZ

    ''


    KA - US - 49 State Spec

    • $168.60

  • 002

    panel, l. fr. fender (dot)

    Part Number: 60261-SCV-A91ZZ

    ''


    KA - US - 49 State Spec

    • $168.18

  • 003

    fender, r. fr. (inner)

    Part Number: 74101-SCV-A00

    ''


    KA - US - 49 State Spec

    • $89.30

  • 004

    shield, fr. splash

    Part Number: 74111-SCV-A50

    ''


    KA - US - 49 State Spec

    • $76.92

  • 005

    cladding, r. fr. *b537m*

    Part Number: 74115-SCV-A20ZA
    (NEUTRON BLUE METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cladding, r. fr. *b92p*

    Part Number: 74115-SCV-A20ZB
    (NIGHTHAWK BLACK PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cladding, r. fr. *gy25m*

    Part Number: 74115-SCV-A20ZC
    (KIWI METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cladding, r. fr. *nh700m*

    Part Number: 74115-SCV-A20ZD
    (ALABASTER SILVER METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cladding, r. fr. *r525p*

    Part Number: 74115-SCV-A20ZE
    (TANGO RED PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cladding, r. fr. *yr563m*

    Part Number: 74115-SCV-A20ZF
    (TANGERINE METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    fender, l. fr. (inner)

    Part Number: 74151-SCV-A00

    ''


    KA - US - 49 State Spec

    • $89.30

  • 007

    cladding, l. fr. *b537m*

    Part Number: 74165-SCV-A20ZA
    (NEUTRON BLUE METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    cladding, l. fr. *b92p*

    Part Number: 74165-SCV-A20ZB
    (NIGHTHAWK BLACK PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    cladding, l. fr. *gy25m*

    Part Number: 74165-SCV-A20ZC
    (KIWI METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    cladding, l. fr. *nh700m*

    Part Number: 74165-SCV-A20ZD
    (ALABASTER SILVER METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    cladding, l. fr. *r525p*

    Part Number: 74165-SCV-A20ZE
    (TANGO RED PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    cladding, l. fr. *yr563m*

    Part Number: 74165-SCV-A20ZF
    (TANGERINE METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    bolt, flange (6x15)

    Part Number: 90108-S0A-003

    ''


    KA - US - 49 State Spec

    • $0.37

  • 009

    screw, tapping (5x20)

    Part Number: 90114-SE0-000

    ''


    KA - US - 49 State Spec

    • $3.28

  • 011

    nut, clip (6mm)

    Part Number: 90305-SM4-003

    ''


    KA - US - 49 State Spec

    • $3.07

  • 012

    bolt, fender

    Part Number: 90501-SM4-003

    ''


    KA - US - 49 State Spec

    • $5.43

  • 014

    clip a, bumper

    Part Number: 91503-SZ3-003

    ''


    KA - US - 49 State Spec

    • $3.90

  • 015

    clip b, garnish

    Part Number: 91504-SCV-A00

    ''


    KA - US - 49 State Spec

    • $3.58

  • 016

    clip, fender (inner)

    Part Number: 91512-SX0-003

    ''


    KA - US - 49 State Spec

    • $1.70

  • 018

    clip, cladding bracket

    Part Number: 91505-SCV-A00

    ''


    KA - US - 49 State Spec

    • $3.43
