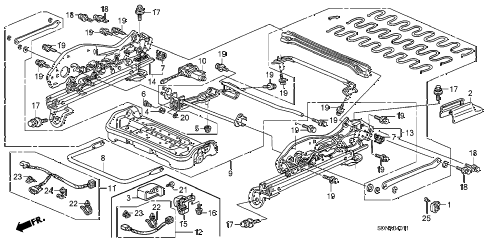

View large diagramHide diagramView diagramView printable catalog
  • 001

    switch assy., power seat *yr239l*

    • Part Number: 35950-SM4-J32YA

    (IVORY)

    '


    KA - US - 49 State Spec

    • $102.92

  • 001

    switch assy., power seat *nh167l*

    • Part Number: 35950-SM4-J32ZD

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $102.92

  • 001

    switch assy., power seat *nh361l*

    • Part Number: 35950-SM4-J32ZY

    (GRAY)

    '


    KA - US - 49 State Spec

    • $102.92

  • 002

    cover, rr. foot *nh167l*

    • Part Number: 81195-SDN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $11.40

  • 002

    cover, rr. foot *yr239l*

    • Part Number: 81195-SDN-A01ZB

    (IVORY)

    '


    KA - US - 49 State Spec

    • $11.40

  • 002

    cover, rr. foot *nh361l*

    • Part Number: 81195-SDN-A01ZC

    (GRAY)

    '


    KA - US - 49 State Spec

    • $11.40

  • 003

    cover, sps unit

    • Part Number: 81198-SDA-L01

    '


    KA - US - 49 State Spec

    • $10.68

  • 004

    bush

    • Part Number: 81227-SDA-A41

    '


    KA - US - 49 State Spec

    • $2.78

  • 005

    nut, flange (8mm)

    • Part Number: 81228-SDA-A41

    '


    KA - US - 49 State Spec

    • $3.88

  • 006

    pin, power height

    • Part Number: 81229-SDA-A41

    '


    KA - US - 49 State Spec

    • $5.02

  • 007

    cap, slide adjuster end (upper)

    • Part Number: 81272-S5A-J01

    '


    KA - US - 49 State Spec

    • $9.38

  • 008

    lever

    • Part Number: 81273-SDA-A01

    '


    KA - US - 49 State Spec

    • $14.38

  • 009

    frame, fr. seat cushion

    • Part Number: 81539-SDN-L31

    '


    KA - US - 49 State Spec

    • $154.65

  • 010

    motor, l. height geared

    • Part Number: 81603-SDA-A41

    '


    KA - US - 49 State Spec

    • $211.07

  • 011

    cord, l. power seat (2way)

    • Part Number: 81606-SDA-L40

    '


    KA - US - 49 State Spec

    • $15.47

  • 012

    sub-wire, sps (normal)

    • Part Number: 81607-SDA-L00

    '


    KA - US - 49 State Spec

    • $8.83

  • 013

    adjuster, l. slide (outer)

    • Part Number: 81660-SDN-L31

    '


    KA - US - 49 State Spec

    • $144.42

  • 014

    adjuster, l. slide (inner)

    • Part Number: 81670-SDN-A31

    '


    KA - US - 49 State Spec

    • $157.95

  • 015

    sensor assy., seat position

    • Part Number: 81679-S0X-A01

    '


    KA - US - 49 State Spec

    • $52.60

  • 016

    screw, torx (6x16)

    • Part Number: 90115-S0X-A01

    '


    KA - US - 49 State Spec

    • $2.40

  • 017

    bolt-washer (10x25)

    • Part Number: 90135-S7A-J51

    '


    KA - US - 49 State Spec

    • $2.87

  • 018

    bolt-washer (10x22)

    • Part Number: 90143-SR3-900

    '


    KA - US - 49 State Spec

    • $5.12

  • 019

    bolt-washer (8x22)

    • Part Number: 90143-ST5-900

    '


    KA - US - 49 State Spec

    • $3.28

  • 020

    nut, push

    • Part Number: 90303-SDA-A41

    '


    KA - US - 49 State Spec

    • $3.90

  • 021

    clip, trim (5mm) *nh167l*

    • Part Number: 90666-SA0-003A3

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $4.10

  • 021

    clip, trim (5mm) *nh361l*

    • Part Number: 90666-SA0-003F2

    (GRAY)

    '


    KA - US - 49 State Spec

    • $2.67

  • 021

    clip, trim (5mm) *yr239l*

    • Part Number: 90666-SA0-003F3

    (IVORY)

    '


    KA - US - 49 State Spec

    • $2.28

  • 022

    clip b, harness band (129.4mm)(dark brown)

    • Part Number: 91507-P01-003

    '


    KA - US - 49 State Spec

    • $3.90

  • 023

    clip, connector (black)

    • Part Number: 91533-S82-003

    '


    KA - US - 49 State Spec

    • $3.37

  • 024

    clip, harness band (96.9mm) (natural)

    • Part Number: 91540-S0A-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 025

    screw, tapping (4x10)

    • Part Number: 93903-14280

    '


    KA - US - 49 State Spec

    • $0.55

Back to Top
