CLUTCH MASTER CYLINDER (1)
View large diagramHide diagramView diagramView printable catalogTranslate

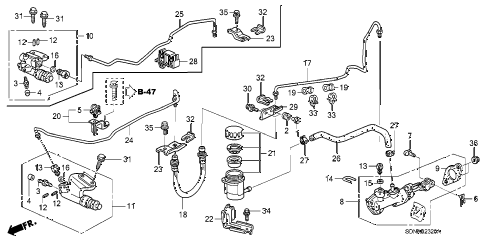

2007 accord EXL(NAVI) 2 DOOR 5MT CLUTCH MASTER CYLINDER (1) diagram

  • 001

    collar, engine cover

    Part Number: 17116-PWA-000

    ''


    KA - US - 49 State Spec

    • $2.28

  • 002

    rubber, position sensor cover

    Part Number: 21724-RAY-000

    ''


    KA - US - 49 State Spec

    • $4.55

  • 003

    screw, bleeder

    Part Number: 43352-567-000

    ''


    KA - US - 49 State Spec

    • $6.13

  • 004

    cap, bleeder screw

    Part Number: 43353-SD5-003

    ''


    KA - US - 49 State Spec

    • $3.42

  • 005

    clip c

    Part Number: 46393-SM4-951

    ''


    KA - US - 49 State Spec

    • $4.60

  • 006

    pin, lock (8mm)

    Part Number: 46911-S70-003

    ''


    KA - US - 49 State Spec

    • $2.58

  • 007

    pin, clutch pedal

    Part Number: 46912-S84-A00

    ''


    KA - US - 49 State Spec

    • $3.35

  • 008

    master cylinder assy., clutch

    Part Number: 46920-S7A-A03

    ''


    KA - US - 49 State Spec

    • $147.50

  • 009

    seal, master cylinder

    Part Number: 46928-S5A-A01

    ''


    KA - US - 49 State Spec

    • $4.47

  • 011

    cylinder assy., clutch slave

    Part Number: 46930-S7C-E02

    ''


    KA - US - 49 State Spec

    • $82.38

  • 012

    pin, spring

    Part Number: 46931-S5A-003

    ''


    KA - US - 49 State Spec

    • $1.05

  • 013

    connector, clutch master cylinder

    Part Number: 46941-S5A-003

    ''


    KA - US - 49 State Spec

    • $10.85

  • 014

    pin, snap

    Part Number: 46942-S5A-003

    ''


    KA - US - 49 State Spec

    • $3.48

  • 015

    seal, ring

    Part Number: 46943-S5A-003

    ''


    KA - US - 49 State Spec

    • $3.60

  • 016

    seal, ring

    Part Number: 46949-S5A-003

    ''


    KA - US - 49 State Spec

    • $1.98

  • 017

    pipe a, clutch

    Part Number: 46960-SDA-A04

    ''


    KA - US - 49 State Spec

    • $13.40

  • 018

    hose, clutch

    Part Number: 46961-SDA-A02

    ''


    KA - US - 49 State Spec

    • $18.57

  • 019

    rubber, pipe

    Part Number: 46962-SDA-A01

    ''


    KA - US - 49 State Spec

    • $3.55

  • 020

    clamp, clutch pipe

    Part Number: 46964-SDA-A00

    ''


    KA - US - 49 State Spec

    • $4.48

  • 021

    tank assy., clutch fluid

    Part Number: 46965-S6A-013

    ''


    KA - US - 49 State Spec

    • $52.95

  • 022

    holder, tank

    Part Number: 46966-SDA-A02

    ''


    KA - US - 49 State Spec

    • $8.23

  • 023

    bracket b, clutch pipe

    Part Number: 46968-SDP-A04

    ''


    KA - US - 49 State Spec

    • $14.29

  • 024

    pipe b, clutch

    Part Number: 46970-SDA-A01

    ''


    KA - US - 49 State Spec

    • $8.27

  • 026

    tube, clutch fluid

    Part Number: 46971-SDA-A01

    ''


    KA - US - 49 State Spec

    • $7.13

  • 027

    clamp, tube (d12)

    Part Number: 46972-S6F-E01

    ''


    KA - US - 49 State Spec

    • $3.08

  • 029

    bracket a, clutch pipe

    Part Number: 46995-SDA-A02

    ''


    KA - US - 49 State Spec

    • $16.38

  • 030

    bolt, special (6x25)

    Part Number: 90001-P7J-000

    ''


    KA - US - 49 State Spec

    • $1.60

  • 031

    bolt, flange (8x30)

    Part Number: 90106-S7A-E00

    ''


    KA - US - 49 State Spec

    • $2.47

  • 032

    clip, brake hose

    Part Number: 90651-538-000

    ''


    KA - US - 49 State Spec

    • $4.77

  • 033

    clip, tube (12mm)

    Part Number: 90658-759-003

    ''


    KA - US - 49 State Spec

    • $2.75

  • 034

    bolt-washer (6x12)

    Part Number: 93403-06012-08

    ''


    KA - US - 49 State Spec

    • $0.97

  • 035

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 036

    nut, flange (8mm)

    Part Number: 94050-08080

    ''


    KA - US - 49 State Spec

    • $0.27

Back to Top
collar, engine coverrubber, position sensor coverscrew, bleederscrew, bleedercap, bleeder screwcap, bleeder screwclip cpin, lock (8mm)pin, clutch pedalmaster cylinder assy., clutchseal, master cylindercylinder assy., clutch slavepin, springpin, springpin, springpin, springconnector, clutch master cylinderconnector, clutch master cylinderconnector, clutch master cylinderpin, snapseal, ringseal, ringseal, ringpipe a, clutchhose, clutchrubber, piperubber, pipeclamp, clutch pipetank assy., clutch fluidholder, tankbracket b, clutch pipebracket b, clutch pipepipe b, clutchtube, clutch fluidclamp, tube (d12)clamp, tube (d12)bracket a, clutch pipebolt, special (6x25)bolt, flange (8x30)bolt, flange (8x30)bolt, flange (8x30)clip, brake hoseclip, brake hoseclip, brake hoseclip, tube (12mm)clip, tube (12mm)bolt-washer (6x12)bolt-washer (6x16)bolt-washer (6x16)nut, flange (8mm)
