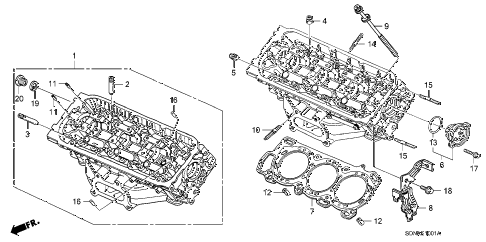

2007 accord EXV6(NAVI) 2 DOOR 6MT FRONT CYLINDER HEAD (V6) diagram
Back to Top
cylinder head assy., fr.guide, valve (over size)guide, ex. valve (over size)seal a, valve stem (nok)seal b, valve stem (nok)cover assy., fr. camshaft thrustgasket, cylinder head (nippon leakless)stay, fr. laf connectorbolt-washer (12x163)bolt, stud (8x41)pin, dowel (6x10)pin, dowel (6x10)pin, dowel (16x22)pin, dowel (16x22)o-ring (48.5x2.4)bolt, stud (8x25)bolt, stud (8x32)bolt, stud (8x32)pin, dowel (6x10)pin, dowel (6x10)bolt, flange (8x28)bolt, flange (10x16)washer, sealing boltbolt, sealing (28mm)
