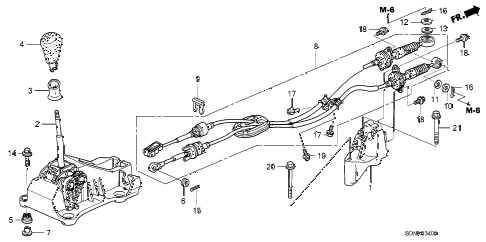

SHIFT LEVER (L4) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: stay, change wire Part Number: 24601-RAP-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $43.42

Ref #: 002	Honda Part: lever sub-assy., change Part Number: 54100-SDA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $74.88

Ref #: 003	Honda Part: ring Part Number: 54103-SDA-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $3.32

Ref #: 004	Honda Part: knob (outer) (dimple) Part Number: 54110-SDA-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $56.48

Ref #: 005	Honda Part: rubber, floating Part Number: 54117-SDA-A01 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.33

Ref #: 006	Honda Part: washer assy., wire Part Number: 54118-S10-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.77

Ref #: 007	Honda Part: collar, floating Part Number: 54119-SDA-A01 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.07

Ref #: 008	Honda Part: wire, change Part Number: 54310-SDA-L02 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $150.42

Ref #: 009	Honda Part: plate, change wire Part Number: 54357-SF1-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.80

Ref #: 010	Honda Part: washer a (1.6mm) Part Number: 90557-SF1-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.83

Ref #: 011	Honda Part: washer b, select wire (0.5mm) Part Number: 90558-SF1-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.10

Ref #: 012	Honda Part: washer a, shift wire (1.6mm) Part Number: 90555-SF1-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.83

Ref #: 013	Honda Part: washer b, shift wire (0.5mm) Part Number: 90556-SF1-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.10

Ref #: 014	Honda Part: bolt-washer (8x35) Part Number: 93405-08035-08 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.42

Ref #: 015	Honda Part: pin, split (2.0x22) Part Number: 94201-20220 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.73

Ref #: 015	Honda Part: pin, split (2.0x35) Part Number: 94201-20350 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.73

Ref #: 017	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.97

Ref #: 018	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.82

Ref #: 019	Honda Part: bolt, flange (8x20) Part Number: 95701-08020-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.49

Ref #: 020	Honda Part: bolt, flange (8x60) Part Number: 95701-08060-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.25

Ref #: 021	Honda Part: bolt, flange (8x70) Part Number: 95701-08070-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.06

Ref #: 001	Honda Part: stay, change wire Part Number: 24601-RAP-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$43.42

Ref #: 002	Honda Part: lever sub-assy., change Part Number: 54100-SDA-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$74.88

Ref #: 003	Honda Part: ring Part Number: 54103-SDA-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$3.32

Ref #: 004	Honda Part: knob (outer) (dimple) Part Number: 54110-SDA-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$56.48

Ref #: 005	Honda Part: rubber, floating Part Number: 54117-SDA-A01 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.33

Ref #: 006	Honda Part: washer assy., wire Part Number: 54118-S10-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.77

Ref #: 007	Honda Part: collar, floating Part Number: 54119-SDA-A01 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.07

Ref #: 008	Honda Part: wire, change Part Number: 54310-SDA-L02 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$150.42

Ref #: 009	Honda Part: plate, change wire Part Number: 54357-SF1-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.80

Ref #: 010	Honda Part: washer a (1.6mm) Part Number: 90557-SF1-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.83

Ref #: 011	Honda Part: washer b, select wire (0.5mm) Part Number: 90558-SF1-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.10

Ref #: 012	Honda Part: washer a, shift wire (1.6mm) Part Number: 90555-SF1-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.83

Ref #: 013	Honda Part: washer b, shift wire (0.5mm) Part Number: 90556-SF1-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.10

Ref #: 014	Honda Part: bolt-washer (8x35) Part Number: 93405-08035-08 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.42

Ref #: 015	Honda Part: pin, split (2.0x22) Part Number: 94201-20220 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.73

Ref #: 015	Honda Part: pin, split (2.0x35) Part Number: 94201-20350 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.73

Ref #: 017	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.97

Ref #: 018	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.82

Ref #: 019	Honda Part: bolt, flange (8x20) Part Number: 95701-08020-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.49

Ref #: 020	Honda Part: bolt, flange (8x60) Part Number: 95701-08060-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.25

Ref #: 021	Honda Part: bolt, flange (8x70) Part Number: 95701-08070-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.06
