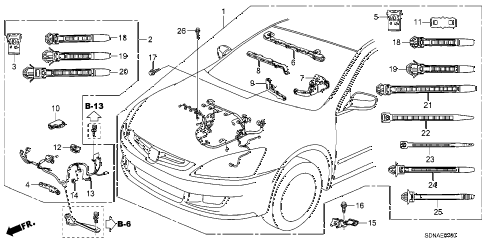

2007 accord LX 2 DOOR 5MT ENGINE WIRE HARNESS (L4) diagram
Back to Top
wire harness, enginesub-wire, starterholder, corrugated (15mm) (dark blue)holder, corrugated (15mm) (dark blue)holder, corrugated (19mm) (dark green)holder a, engine harnessholder b, engine harnessholder c, engine harnessholder d, engine harnessholder e, engine harnessstay, joint connectorcover, battery terminalbolt, battery terminalnut, battery terminalstay e, engine harnessbolt, special (6x20.5) (guide)bolt, special (6x28)clip a, harness band (129.4mm)(dark violet)clip a, harness band (129.4mm)(dark violet)clip b, harness band (129.4mm)(dark green)clip b, harness band (129.4mm)(dark green)clip d, wire harness (135.4mm)(black)e-clip, harness band (179.4mm)(dark gray)band, wire harness (172mm) (black)band, clamp (143.2mm) (natural)clip, harness band (135mm) (7mm hole) (natural)bolt, flange (6x16)
