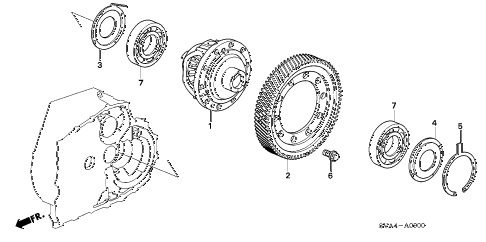

2007 civic EX(NAV) 2 DOOR 5AT DIFFERENTIAL diagram
Back to Top
differentialgear, final drivenspacer (41x90x1)spacer (41x90x1)shim a (90mm) (1.30)shim b (90mm) (1.35)shim c (90mm) (1.40)shim d (90mm) (1.45)shim e (90mm) (1.50)shim f (90mm) (1.55)shim g (90mm) (1.60)shim h (90mm) (1.65)shim i (90mm) (1.70)shim j (90mm) (1.75)shim k (90mm) (1.80)shim l (90mm) (1.85)shim m (90mm) (1.90)shim n (90mm) (1.95)shim o (90mm) (2.00)shim p (90mm) (2.05)shim q (90mm) (2.10)shim r (90mm) (2.15)shim s (90mm) (2.20)shim t (90mm) (2.25)shim u (90mm) (2.30)shim v (90mm) (2.35)shim w (90mm) (2.40)bolt, flange (10mm)bearing, ball (40x90x20)bearing, ball (40x90x20)
