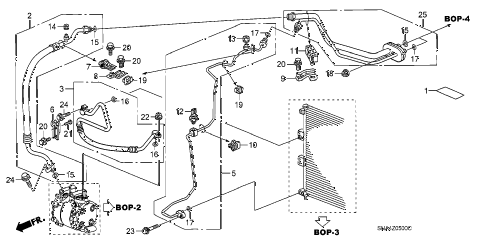

2007 civic DX 4 DOOR 5AT A/C HOSES - PIPES diagram
Back to Top
label, air conditioner information (hfc134a)hose, suctionhose, dischargepipe, receiverclamp, discharge hoseclamp b, suction pipestay a, air conditioner pipestay b, air conditioner pipeclip, receiver pipeclip, air conditioner pipesensor assy., pressurecap, valve (h)cap, valve (l) (nichirin)o-ring (5/8")o-ring (5/8")o-ring (5/8")o-ring (1/2")o-ring (1/2")o-ring (8mm)o-ring (8mm)o-ring (8mm)nut, flange (6mm)clip (8mm)clip (8mm)bolt-washer (6x16)bolt-washer (6x16)bolt-washer (6x16)bolt-washer (6x16)screw, pan (4x8)nut, flange (6mm)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)pipe assy., air conditioner
