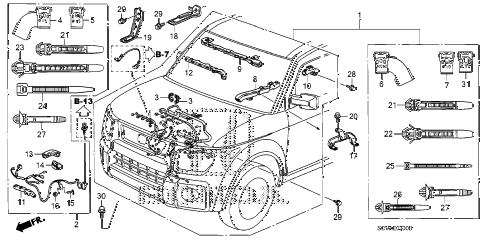

2007 element EX(4WD) 5 DOOR 5MT ENGINE WIRE HARNESS diagram
Back to Top
wire harness, enginesub-wire, startercollar, harness grommetcollar, harness grommetholder, corrugated tube (15mm)(dark blue)holder, corrugated (15mm) (dark blue)holder, corrugated tube (19mm)(dark green)holder a, engine harnessholder a, engine harnessholder assy. b, engine harnessholder, corrugated tube (15mm)holder c, engine harnessholder d, engine harnesscover, battery terminalbolt, battery terminalnut, battery terminalstay d, engine harnessstay e, engine wire harnessstay f, engine harnessbolt, special (6x20.5) (guide)clip a, harness band (129.4mm)(dark violet)clip a, harness band (129.4mm)(dark violet)clip b, harness band (129.4mm)(dark green)clip d, wire harness (135.4mm)(black)band, wire harness (172mm) (black)band, clamp (143.2mm) (natural)clip, harness band (150mm) (violet)clip, harness band (135mm) (7mm hole) (natural)clip, harness band (135mm) (7mm hole) (natural)bolt-washer (6x20)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x16)
