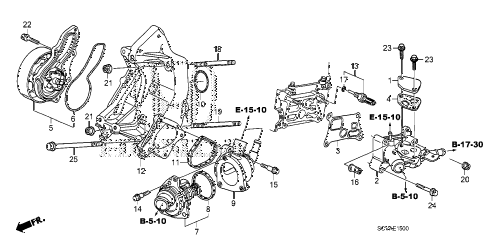

2007 element LX(4WD) 5 DOOR 5MT WATER PUMP diagram
Back to Top
plate, egr portpassage, egrgasket, egr passagegasket, egr valve (ishino gasket)water pumpgasket, water pumpthermostat assy. (nippon thermostat)seal, thermostat cover (nippon thermostat)case, thermostat (fuji seiko)o-ring (43.8x3.1)seal, thermostat case (nippon thermostat)passage, watersensor assy., water temperature (keihin)bolt, special (6x19) (nippon thermostat)bolt, special (6x28)nut, specialo-ring (9.5x1.9)bolt, stud (10x60)bolt, stud (10x100)nut, flange (8mm)nut, flange (10mm)nut, flange (10mm)bolt, flange (6x25)bolt, flange (8x25)bolt, flange (8x25)bolt, flange (8x45)bolt, flange (10x105)
