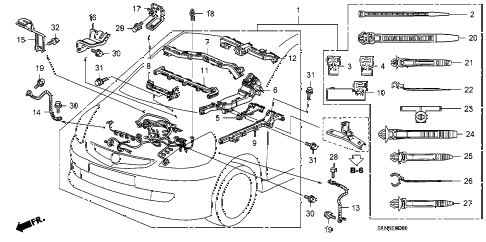

View large diagramHide diagramView diagramView printable catalog
  • 001

    wire harness, engine

    • Part Number: 32110-RME-A00

    '


    KA - US - 49 State Spec

    • $510.67

  • 002

    band, cable (90mm)

    • Part Number: 32112-S2K-003

    '


    KA - US - 49 State Spec

    • $2.12

  • 003

    holder, corrugated (10mm) (dark blue)

    • Part Number: 32115-P64-003

    '


    KA - US - 49 State Spec

    • $3.70

  • 004

    holder, corrugated (19mm) (dark green)

    • Part Number: 32118-P72-003

    '


    KA - US - 49 State Spec

    • $5.98

  • 006

    holder a, engine wire harness

    • Part Number: 32127-RME-A00

    '


    KA - US - 49 State Spec

    • $23.87

  • 007

    holder b, engine harness

    • Part Number: 32128-PYD-000

    '


    KA - US - 49 State Spec

    • $11.68

  • 008

    holder c, engine wire harness

    • Part Number: 32129-RME-A00

    '


    KA - US - 49 State Spec

    • $10.10

  • 010

    holder, corrugated (10mm) (dark blue)

    • Part Number: 32132-RDJ-A01

    '


    KA - US - 49 State Spec

    • $3.28

  • 011

    holder g, engine wire harness

    • Part Number: 32133-RME-A00

    '


    KA - US - 49 State Spec

    • $11.13

  • 012

    holder k, engine wire harness

    • Part Number: 32136-RME-A00

    '


    KA - US - 49 State Spec

    • $11.13

  • 013

    cable assy., transmission ground

    • Part Number: 32601-SEL-920

    '


    KA - US - 49 State Spec

    • $8.45

  • 014

    cable, sub-ground

    • Part Number: 32610-SAA-G00

    '


    KA - US - 49 State Spec

    • $9.37

  • 015

    stay a, engine wire harness

    • Part Number: 32741-PWA-G00

    '


    KA - US - 49 State Spec

    • $6.28

  • 016

    stay d, engine wire harness

    • Part Number: 32744-RME-A00

    '


    KA - US - 49 State Spec

    • $4.92

  • 017

    stay h, engine wire harness

    • Part Number: 32748-RME-A00

    '


    KA - US - 49 State Spec

    • $4.92

  • 018

    bolt (5x13)

    • Part Number: 90130-SR3-003

    '


    KA - US - 49 State Spec

    • $2.53

  • 019

    bolt, ground (6x12)

    • Part Number: 90153-SE0-003

    '


    KA - US - 49 State Spec

    • $0.42

  • 020

    clip a, harness band (129.4mm)(dark violet)

    • Part Number: 91506-RTA-003

    '


    KA - US - 49 State Spec

    • $3.28

  • 021

    clip, wire harness (110mm) (7mm hole) (green)

    • Part Number: 91507-SL9-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 022

    clip, engine harness (135mm)

    • Part Number: 91508-PT2-003

    '


    KA - US - 49 State Spec

    • $2.53

  • 024

    band, harness (128mm) (gray)

    • Part Number: 91547-SJ6-003

    '


    KA - US - 49 State Spec

    • $2.88

  • 025

    clip, harness band (135mm) (7mm hole) (gray)

    • Part Number: 91558-PFD-003

    '


    KA - US - 49 State Spec

    • $3.97

  • 026

    clip, tube (135mm) (black)

    • Part Number: 91558-SM4-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 027

    clip, harness band (135mm) (7mm hole) (natural)

    • Part Number: 91558-ST5-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 028

    bolt, hex. (6x8)

    • Part Number: 92000-06008-08

    '


    KA - US - 49 State Spec

    • $0.75

  • 029

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 030

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 031

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 032

    bolt, flange (8x12)

    • Part Number: 95701-08012-08

    '


    KA - US - 49 State Spec

    • $0.98

Back to Top
