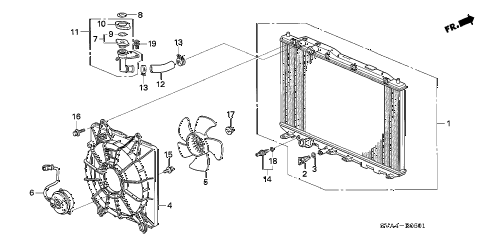

RADIATOR (1.8L) (DENSO) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: radiator (denso) Part Number: 19010-RNB-C51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $323.20

Ref #: 002	Honda Part: bolt, drain (denso) Part Number: 19011-PH1-621 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $6.60

Ref #: 003	Honda Part: gasket, drain (denso) Part Number: 19012-671-300 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.07

Ref #: 004	Honda Part: shroud Part Number: 19015-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $39.10

Ref #: 005	Honda Part: fan, cooling Part Number: 19020-RCJ-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $47.27

Ref #: 006	Honda Part: motor, cooling fan Part Number: 19030-RNA-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $138.83

Ref #: 007	Honda Part: cap, radiator (denso) Part Number: 19045-RAA-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $16.13

Ref #: 009	Honda Part: label, radiator cap Part Number: 19046-RAA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.55

Ref #: 010	Honda Part: cover, radiator cap (denso) Part Number: 19047-PLC-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $5.65

Ref #: 011	Honda Part: filler assy., water (denso) Part Number: 19050-RNB-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $15.03

Ref #: 012	Honda Part: hose, water filler Part Number: 19051-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $5.48

Ref #: 013	Honda Part: clip, water hose Part Number: 19511-PFB-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $3.07

Ref #: 014	Honda Part: sensor assy., water temperature (denso) Part Number: 37870-RTA-005 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $38.18

Ref #: 015	Honda Part: screw-washer (4x11) Part Number: 90051-P5A-004 Standard Qty.: 003 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.68

Ref #: 016	Honda Part: bolt-washer (6x16) (denso) Part Number: 90042-PAA-A01 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.37

Ref #: 017	Honda Part: nut, hex. (5mm) (denso) Part Number: 90043-PD2-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.58

Ref #: 018	Honda Part: o-ring (denso) Part Number: 91307-RTA-005 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.07

Ref #: 019	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-07 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.02

Ref #: 001	Honda Part: radiator (denso) Part Number: 19010-RNB-C51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$323.20

Ref #: 002	Honda Part: bolt, drain (denso) Part Number: 19011-PH1-621 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$6.60

Ref #: 003	Honda Part: gasket, drain (denso) Part Number: 19012-671-300 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.07

Ref #: 004	Honda Part: shroud Part Number: 19015-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$39.10

Ref #: 005	Honda Part: fan, cooling Part Number: 19020-RCJ-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$47.27

Ref #: 006	Honda Part: motor, cooling fan Part Number: 19030-RNA-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$138.83

Ref #: 007	Honda Part: cap, radiator (denso) Part Number: 19045-RAA-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$16.13

Ref #: 009	Honda Part: label, radiator cap Part Number: 19046-RAA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.55

Ref #: 010	Honda Part: cover, radiator cap (denso) Part Number: 19047-PLC-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$5.65

Ref #: 011	Honda Part: filler assy., water (denso) Part Number: 19050-RNB-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$15.03

Ref #: 012	Honda Part: hose, water filler Part Number: 19051-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$5.48

Ref #: 013	Honda Part: clip, water hose Part Number: 19511-PFB-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$3.07

Ref #: 014	Honda Part: sensor assy., water temperature (denso) Part Number: 37870-RTA-005 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$38.18

Ref #: 015	Honda Part: screw-washer (4x11) Part Number: 90051-P5A-004 Standard Qty.: 003 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.68

Ref #: 016	Honda Part: bolt-washer (6x16) (denso) Part Number: 90042-PAA-A01 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.37

Ref #: 017	Honda Part: nut, hex. (5mm) (denso) Part Number: 90043-PD2-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.58

Ref #: 018	Honda Part: o-ring (denso) Part Number: 91307-RTA-005 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.07

Ref #: 019	Honda Part: bolt-washer (6x16) Part Number: 93405-06016-07 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.02
