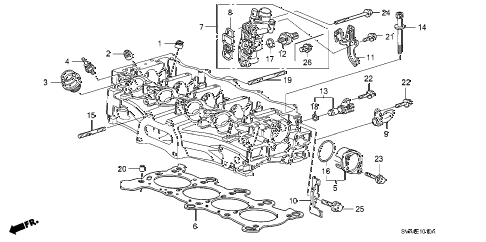

SPOOL VALVE (1.8L) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: seal a, valve stem (nok) Part Number: 12210-PZ1-004 Standard Qty.: 008 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.75

Ref #: 002	Honda Part: seal b, valve stem (nok) Part Number: 12211-PZ1-004 Standard Qty.: 008 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.75

Ref #: 003	Honda Part: collar, spark plug coil Part Number: 12215-RNA-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $9.08

Ref #: 004	Honda Part: bolt, spark plug coil Part Number: 12216-RNA-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.42

Ref #: 005	Honda Part: cover, camshaft thrust Part Number: 12240-RNA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $18.35

Ref #: 006	Honda Part: gasket, cylinder head (nippon leakless) Part Number: 12251-RNA-A02 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $43.02

Ref #: 007	Honda Part: valve assy., spool Part Number: 15810-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $161.83

Ref #: 008	Honda Part: filter assy., spool valve Part Number: 15826-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.27

Ref #: 009	Honda Part: joint, egr Part Number: 17147-RNA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $27.22

Ref #: 010	Honda Part: stay c, engine wire harness Part Number: 32743-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $5.93

Ref #: 011	Honda Part: stay d, engine harness Part Number: 32744-RNA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.23

Ref #: 012	Honda Part: sensor, oil pressure Part Number: 37260-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $156.35

Ref #: 013	Honda Part: sensor assy., tdc Part Number: 37510-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $80.50

Ref #: 014	Honda Part: bolt-washer (11x176) Part Number: 90005-RNA-A01 Standard Qty.: 010 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $3.65

Ref #: 015	Honda Part: bolt, stud (8x25) Part Number: 90026-RNA-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.32

Ref #: 016	Honda Part: o-ring (46.8x2.2) (nok) Part Number: 91302-PX4-004 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.15

Ref #: 017	Honda Part: o-ring (13x1.5) Part Number: 91319-PAA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.80

Ref #: 018	Honda Part: o-ring (15x1.9) Part Number: 91333-PNA-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.83

Ref #: 019	Honda Part: bolt, stud (8x32) Part Number: 92900-08032-1B Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.30

Ref #: 020	Honda Part: pin, dowel (14x20) Part Number: 94301-14200 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.37

Ref #: 021	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.00

Ref #: 022	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.88

Ref #: 023	Honda Part: bolt, flange (6x20) Part Number: 95701-06020-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.22

Ref #: 024	Honda Part: bolt, flange (6x55) Part Number: 95701-06055-08 Standard Qty.: 003 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.20

Ref #: 025	Honda Part: bolt, flange (8x16) Part Number: 95701-08016-08 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.98

Ref #: 001	Honda Part: seal a, valve stem (nok) Part Number: 12210-PZ1-004 Standard Qty.: 008 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.75

Ref #: 002	Honda Part: seal b, valve stem (nok) Part Number: 12211-PZ1-004 Standard Qty.: 008 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.75

Ref #: 003	Honda Part: collar, spark plug coil Part Number: 12215-RNA-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$9.08

Ref #: 004	Honda Part: bolt, spark plug coil Part Number: 12216-RNA-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.42

Ref #: 005	Honda Part: cover, camshaft thrust Part Number: 12240-RNA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$18.35

Ref #: 006	Honda Part: gasket, cylinder head (nippon leakless) Part Number: 12251-RNA-A02 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$43.02

Ref #: 007	Honda Part: valve assy., spool Part Number: 15810-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$161.83

Ref #: 008	Honda Part: filter assy., spool valve Part Number: 15826-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.27

Ref #: 009	Honda Part: joint, egr Part Number: 17147-RNA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$27.22

Ref #: 010	Honda Part: stay c, engine wire harness Part Number: 32743-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$5.93

Ref #: 011	Honda Part: stay d, engine harness Part Number: 32744-RNA-A00 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.23

Ref #: 012	Honda Part: sensor, oil pressure Part Number: 37260-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$156.35

Ref #: 013	Honda Part: sensor assy., tdc Part Number: 37510-RNA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$80.50

Ref #: 014	Honda Part: bolt-washer (11x176) Part Number: 90005-RNA-A01 Standard Qty.: 010 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$3.65

Ref #: 015	Honda Part: bolt, stud (8x25) Part Number: 90026-RNA-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.32

Ref #: 016	Honda Part: o-ring (46.8x2.2) (nok) Part Number: 91302-PX4-004 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.15

Ref #: 017	Honda Part: o-ring (13x1.5) Part Number: 91319-PAA-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.80

Ref #: 018	Honda Part: o-ring (15x1.9) Part Number: 91333-PNA-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.83

Ref #: 019	Honda Part: bolt, stud (8x32) Part Number: 92900-08032-1B Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.30

Ref #: 020	Honda Part: pin, dowel (14x20) Part Number: 94301-14200 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.37

Ref #: 021	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.00

Ref #: 022	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.88

Ref #: 023	Honda Part: bolt, flange (6x20) Part Number: 95701-06020-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.22

Ref #: 024	Honda Part: bolt, flange (6x55) Part Number: 95701-06055-08 Standard Qty.: 003 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.20

Ref #: 025	Honda Part: bolt, flange (8x16) Part Number: 95701-08016-08 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.98
