BATTERY
View large diagramHide diagramView diagramView printable catalogTranslate

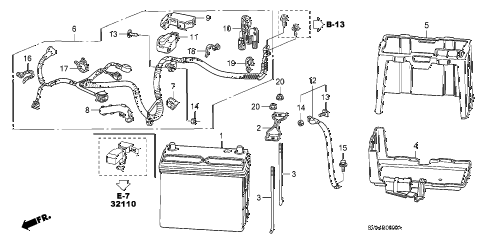

2008 civic SI 2 DOOR 6MT BATTERY diagram

  • 001

    battery (51r/500amp85)

    Part Number: 31500-SR1-100M

    ''


    KA - US - 49 State Spec

    • $115.42

  • 002

    plate, battery setting

    Part Number: 31512-SA5-000

    ''


    KA - US - 49 State Spec

    • $18.00

  • 003

    bolt, battery setting (220mm)

    Part Number: 31513-SL4-000

    ''


    KA - US - 49 State Spec

    • $5.27

  • 004

    box, battery (46b24)

    Part Number: 31521-SNA-A00

    ''


    KA - US - 49 State Spec

    • $5.77

  • 005

    cover, battery (46b24)

    Part Number: 31531-SNA-000

    ''


    KA - US - 49 State Spec

    • $8.05

  • 006

    sub-wire, starter

    Part Number: 32111-RRB-A03

    ''


    KA - US - 49 State Spec

    • $99.52

  • 007

    holder, corrugated (15mm) (dark blue)

    Part Number: 32117-P65-003

    ''


    KA - US - 49 State Spec

    • $4.77

  • 008

    holder, corrugated (15u) (black)

    Part Number: 32117-RTA-003

    ''


    KA - US - 49 State Spec

    • $4.77

  • 009

    holder, starter sub-wire

    Part Number: 32125-RRA-300

    ''


    KA - US - 49 State Spec

    • $4.77

  • 010

    cover, starter cable terminal

    Part Number: 32413-PND-003

    ''


    KA - US - 49 State Spec

    • $10.92

  • 011

    cover, battery terminal

    Part Number: 32418-RBG-300

    ''


    KA - US - 49 State Spec

    • $5.43

  • 012

    cable assy., battery ground

    Part Number: 32600-SNA-A00

    ''


    KA - US - 49 State Spec

    • $9.95

  • 013

    bolt, battery terminal

    Part Number: 32601-SK7-900

    ''


    KA - US - 49 State Spec

    • $5.38

  • 014

    nut, battery terminal

    Part Number: 32602-SK7-900

    ''


    KA - US - 49 State Spec

    • $3.28

  • 015

    bolt, ground (6x16)

    Part Number: 90149-SE0-003

    ''


    KA - US - 49 State Spec

    • $4.95

  • 016

    clip a, harness band (129.4mm)(dark violet)

    Part Number: 91506-RTA-003

    ''


    KA - US - 49 State Spec

    • $3.42

  • 017

    clip d, wire harness (135.4mm)(black)

    Part Number: 91509-RRA-003

    ''


    KA - US - 49 State Spec

    • $0.82

  • 018

    band, harness (120mm) (black)

    Part Number: 91531-S5B-003

    ''


    KA - US - 49 State Spec

    • $4.70

  • 019

    clip, harness band (135mm) (7mm hole) (natural)

    Part Number: 91558-ST5-003

    ''


    KA - US - 49 State Spec

    • $4.27

  • 020

    nut, flange (6mm)

    Part Number: 94050-06080

    ''


    KA - US - 49 State Spec

    • $0.25

Back to Top
battery (51r/500amp85)plate, battery settingbolt, battery setting (220mm)bolt, battery setting (220mm)box, battery (46b24)cover, battery (46b24)sub-wire, starterholder, corrugated (15mm) (dark blue)holder, corrugated (15u) (black)holder, starter sub-wirecover, starter cable terminalcover, battery terminalcable assy., battery groundbolt, battery terminalbolt, battery terminalnut, battery terminalnut, battery terminalbolt, ground (6x16)clip a, harness band (129.4mm)(dark violet)clip d, wire harness (135.4mm)(black)band, harness (120mm) (black)clip, harness band (135mm) (7mm hole) (natural)nut, flange (6mm)nut, flange (6mm)
