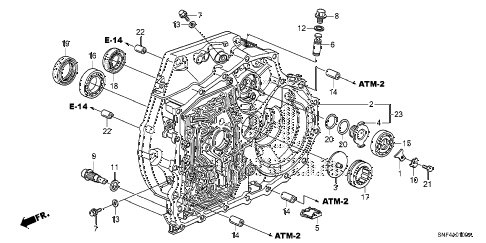

2008 civic GX 4 DOOR 5AT TORQUE CONVERTER CASE diagram
Back to Top
plate, bearing settingcase set, torque converterplate, oil guidecollar, oil guidemagnet, transmissionvalve, lubrication checkbolt, sealing (8mm)bolt, sealing (8mm)bolt, sealing (16mm)bolt, plug (18mm)washer, lock (6mm)washer, drain plug (18mm)washer, drain plug (16mm)gasket (8mm)gasket (8mm)pin, dowel (14x25)pin, dowel (14x25)pin, dowel (14x25)bearing, ball (26x62x11)bearing, ball (40x68x7.5)bearing, ball (40x68x7.5)bearing, needle (33.5x59x19)oil seal (35x58x8) (nok)oil seal (44x68x8) (nok)o-ring (26.7x1.9) (arai)o-ring (26.7x1.9) (arai)bolt, hex. (6x16)pin, dowel (14x20)pin, dowel (14x20)
