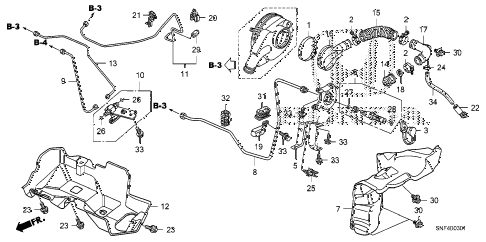

View large diagramHide diagramView diagramView printable catalog
  • 001

    band b, fuel vent duct

    • Part Number: 17559-S1G-003

    '


    KA - US - 49 State Spec

    • $13.22

  • 002

    clip, filler tube

    • Part Number: 17652-SA0-000

    '


    KA - US - 49 State Spec

    • $6.98

  • 003

    cap, receptacle dust

    • Part Number: 17661-S1G-003

    '


    KA - US - 49 State Spec

    • $8.72

  • 004

    plate, receptacle

    • Part Number: 17663-SNF-A00

    '


    KA - US - 49 State Spec

    • $30.77

  • 005

    stay, fuel filler pipe cover

    • Part Number: 17666-SNF-A01

    '


    KA - US - 49 State Spec

    • $28.85

  • 006

    receptacle set

    • Part Number: 17667-S1G-A01

    '


    KA - US - 49 State Spec

    • $672.28

  • 007

    cover, fuel filler pipe

    • Part Number: 17668-SNF-A00

    '


    KA - US - 49 State Spec

    • $97.68

  • 008

    pipe a, fuel filler

    • Part Number: 17713-SNF-A00

    '


    KA - US - 49 State Spec

    • $253.47

  • 009

    pipe c, fuel feed

    • Part Number: 17725-SNF-A00

    '


    KA - US - 49 State Spec

    • $102.92

  • 010

    valve assy., fuel manual

    • Part Number: 17726-SNF-A01

    '


    KA - US - 49 State Spec

    • $785.97

  • 011

    pipe c, fuel relief

    • Part Number: 17730-SNF-A00

    '


    KA - US - 49 State Spec

    • $178.18

  • 012

    cover, floor (lower)

    • Part Number: 17733-SNF-A00

    '


    KA - US - 49 State Spec

    • $34.75

  • 013

    pipe d, fuel feed

    • Part Number: 17740-SNF-A00

    '


    KA - US - 49 State Spec

    • $126.30

  • 014

    joint a, fuel vent duct

    • Part Number: 17741-S5W-A00

    '


    KA - US - 49 State Spec

    • $7.68

  • 015

    tube, fuel vent duct

    • Part Number: 17742-SNF-A00

    '


    KA - US - 49 State Spec

    • $20.97

  • 016

    duct a, fuel vent

    • Part Number: 17743-SNF-A01

    '


    KA - US - 49 State Spec

    • $73.97

  • 017

    duct b, fuel vent

    • Part Number: 17744-SNF-A01

    '


    KA - US - 49 State Spec

    • $21.08

  • 018

    plate

    • Part Number: 17745-S5W-A01

    '


    KA - US - 49 State Spec

    • $10.32

  • 019

    stay d, fuel pipe

    • Part Number: 17764-SNF-A00

    '


    KA - US - 49 State Spec

    • $9.53

  • 020

    clip, clutch pipe

    • Part Number: 46977-SF1-A00

    '


    KA - US - 49 State Spec

    • $3.70

  • 021

    clip, return (6mm)

    • Part Number: 53723-SM4-013

    '


    KA - US - 49 State Spec

    • $0.43

  • 022

    valve, drain (sunroof)

    • Part Number: 70052-SJD-J00

    '


    KA - US - 49 State Spec

    • $8.15

  • 023

    bolt, bumper

    • Part Number: 90149-SA0-003

    '


    KA - US - 49 State Spec

    • $3.63

  • 024

    clamp, fuel hose (18.5mm)

    • Part Number: 90602-SA7-931

    '


    KA - US - 49 State Spec

    • $5.88

  • 025

    clip, receiver pipe (b)

    • Part Number: 90616-SK7-A00

    '


    KA - US - 49 State Spec

    • $6.15

  • 026

    o-ring (1/4 inches)

    • Part Number: 91067-S1G-A01

    '


    KA - US - 49 State Spec

    • $2.47

  • 027

    o-ring (3/8 inches)

    • Part Number: 91067-S1G-B01

    '


    KA - US - 49 State Spec

    • $2.47

  • 028

    o-ring

    • Part Number: 91068-S1G-003

    '


    KA - US - 49 State Spec

    • $7.25

  • 029

    cap, fuel relief pipe (1/4 inches)

    • Part Number: 91069-S1G-B00

    '


    KA - US - 49 State Spec

    • $4.03

  • 030

    clip, fender (inner)

    • Part Number: 91512-SX0-003

    '


    KA - US - 49 State Spec

    • $1.55

  • 031

    rubber a, fuel pipe insulator

    • Part Number: 91594-SDD-E00

    '


    KA - US - 49 State Spec

    • $5.13

  • 032

    clamp e, fuel pipe

    • Part Number: 91599-S1G-003

    '


    KA - US - 49 State Spec

    • $5.07

  • 033

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 034

    bulk hose, vinyl (14x18x8000)

    • Part Number: 95003-45008-10M

    '


    KA - US - 49 State Spec

    Contact your dealer
