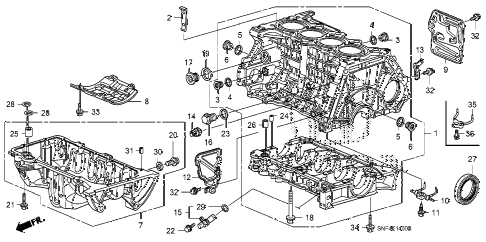

2008 civic GX 4 DOOR 5AT CYLINDER BLOCK - OIL PAN diagram
Back to Top
block assy., cylinder (dot)plate, partitionbolt, sealing (20mm)bolt, sealing (20mm)washer, sealing (20mm)washer, sealing (20mm)washer, sealing (24mm)washer, sealing (24mm)bolt, sealing (24mm)bolt, sealing (24mm)pan assy., oilplate, bafflecover, breatherinsulator, oil pressure switchheatstay, engine wire harness (g)switch assy., oil pressuresensor assy., crankbolt, drain plug (28mm)bolt, sealing (36mm)bolt-washer (10x97)washer, sealing (36mm)bolt, plug (14mm)bolt, flange (6x35)bolt, special (6x20.5) (guide)washer, sealing (28mm)pin, dowel (12x14)pin, dowel (18x22)pin, dowel (20x22)oil seal (80x98x10) (arai)o-ring (20x2.3) (arai)o-ring (20x2.3) (arai)o-ringwasher, drain plug (14mm)pin, dowel (8x10)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x18)bolt, flange (8x35)body, oil jetbolt, oil jet
