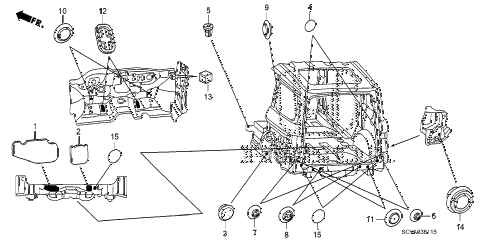

2008 element LX(2WD) 5 DOOR 5MT GROMMET (LOWER DASHBOARD/REAR) diagram
Back to Top
seal, r. rr. panel holeseal, l. rr. panel holegrommet, drain hole (25mm)protection, tailgate (20mm) (circle)grommet, screw (6mm)grommet (10mm)grommet (12mm)grommet (15mm)grommet (20mm)grommet (25mm)plug, blind (25mm)cap, weld holeblock a, dashboard (upper)cap, valve maintenance hole (40mm)seal, door hole (30mm) (black)seal, door hole (30mm) (black)
