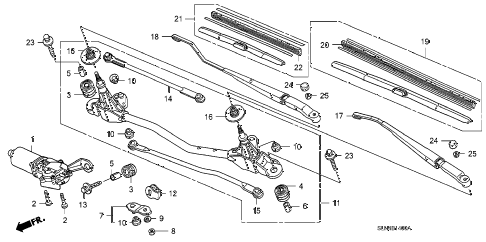

2008 fit BASE 5 DOOR 5MT FRONT WINDSHIELD WIPER diagram
Back to Top
motor, fr. wiperbolt (6x14)bolt (6x14)rubber, mountingrubber, mountingrubber, mountingcollarcollarcollarlink assy. anut, hex. (10mm)washer, spring (10mm)dust sealdust sealdust sealdust seallink, fr. wiperterminal, groundbolt, groundrod unit arod unit bseal, pivotseal, pivotarm, windshield wiper (driver side)arm, windshield wiper (passenger side)blade, windshield wiper (600mm)rubber, blade (600mm)blade, windshield wiper (400mm)bolt-washer (6x32)bolt-washer (6x32)cap, fr. wipercap, fr. wipernut, hex. (10mm)nut, hex. (10mm)
