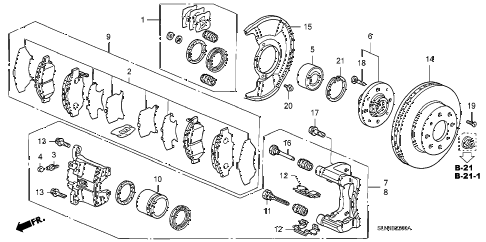

View large diagramHide diagramView diagramView printable catalog
  • 001

    caliper set

    • Part Number: 01463-S2A-000

    '


    KA - US - 49 State Spec

    • $29.17

  • 002

    shim set, fr.

    • Part Number: 06455-S5A-J00

    '


    KA - US - 49 State Spec

    • $11.87

  • 003

    screw, bleeder

    • Part Number: 43352-SM4-951

    '


    KA - US - 49 State Spec

    • $5.42

  • 004

    cap, bleeder screw

    • Part Number: 43353-SD5-003

    '


    KA - US - 49 State Spec

    • $3.28

  • 005

    bearing assy., hub

    • Part Number: 44300-S9H-003

    '


    KA - US - 49 State Spec

    • $79.93

  • 006

    hub assy., fr.

    • Part Number: 44600-SLN-A00

    '


    KA - US - 49 State Spec

    • $143.92

  • 007

    caliper sub-assy., r. fr.

    • Part Number: 45018-SLN-A01

    '


    KA - US - 49 State Spec

    • $312.53

  • 008

    caliper sub-assy., l. fr.

    • Part Number: 45019-SLN-A01

    '


    KA - US - 49 State Spec

    • $312.53

  • 009

    pad set, fr.

    • Part Number: 45022-SLN-A01

    '


    KA - US - 49 State Spec

    • $60.73

  • 010

    piston

    • Part Number: 45216-S5A-J01

    '


    KA - US - 49 State Spec

    • $41.48

  • 011

    pin a

    • Part Number: 45235-S0A-003

    '


    KA - US - 49 State Spec

    • $11.30

  • 012

    retainer a

    • Part Number: 45237-SR3-003

    '


    KA - US - 49 State Spec

    • $6.88

  • 013

    bolt, flange (8x22)

    • Part Number: 45240-SC2-003

    '


    KA - US - 49 State Spec

    • $5.45

  • 014

    disk, fr. brake

    • Part Number: 45251-SCC-900

    '


    KA - US - 49 State Spec

    • $80.07

  • 015

    splash guard

    • Part Number: 45255-SAA-G50

    '


    KA - US - 49 State Spec

    • $25.20

  • 016

    pin b

    • Part Number: 45262-S0A-003

    '


    KA - US - 49 State Spec

    • $11.30

  • 017

    bolt, caliper mounting (12x21)

    • Part Number: 90107-SM4-000

    '


    KA - US - 49 State Spec

    • $0.92

  • 018

    bolt, wheel (saga)

    • Part Number: 90113-SA0-006

    '


    KA - US - 49 State Spec

    • $5.62

  • 018

    bolt, wheel (rocknel fastener)

    • Part Number: 90113-SM1-005

    '


    KA - US - 49 State Spec

    • $1.83

  • 019

    screw, flat (6x14)

    • Part Number: 93600-06014-0H

    '


    KA - US - 49 State Spec

    • $0.60

  • 020

    screw-washer (5x12)

    • Part Number: 93892-05012-08

    '


    KA - US - 49 State Spec

    • $0.68

  • 021

    circlip (inner) (75mm)

    • Part Number: 94520-75000

    '


    KA - US - 49 State Spec

    • $3.30
