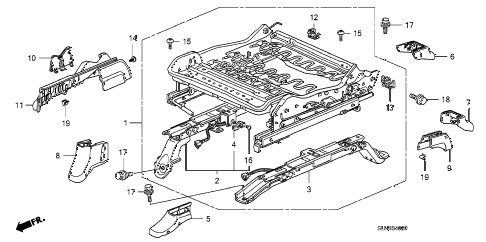

View large diagramHide diagramView diagramView printable catalog
  • 001

    frame, r. fr. seat cushion

    • Part Number: 81136-SLN-A02

    '


    KA - US - 49 State Spec

    • $656.58

  • 002

    sensor assy., weight (outer)

    • Part Number: 81167-SLN-A01

    '


    KA - US - 49 State Spec

    • $267.10

  • 003

    sensor assy., weight (inner)

    • Part Number: 81168-SLN-A01

    '


    KA - US - 49 State Spec

    • $267.10

  • 004

    guard, protector

    • Part Number: 81193-SDA-A01

    '


    KA - US - 49 State Spec

    • $17.27

  • 005

    cover, r. fr. foot (inner) *nh167l*

    • Part Number: 81194-SLN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $7.15

  • 006

    cover, r. rr. foot (outer) *nh167l*

    • Part Number: 81195-SLN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $6.03

  • 007

    cover, r. rr. foot (inner) *nh167l*

    • Part Number: 81196-SLN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $6.03

  • 008

    cover, r. fr. foot (outer) *nh167l*

    • Part Number: 81197-SLN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $8.10

  • 009

    cover, sws rail (inner) *nh167l*

    • Part Number: 81239-SLN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $6.03

  • 010

    cap, sws rail cover *nh167l*

    • Part Number: 81248-SLN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $4.67

  • 011

    cover, sws rail (outer) *nh167l*

    • Part Number: 81249-SLN-A01ZA

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $15.67

  • 012

    cap, slide adjuster end (upper)

    • Part Number: 81262-S5A-J01

    '


    KA - US - 49 State Spec

    • $9.38

  • 013

    cap, slide adjuster end (upper)

    • Part Number: 81272-S5A-J01

    '


    KA - US - 49 State Spec

    • $9.38

  • 014

    clip, mat *nh167l*

    • Part Number: 82198-SHJ-A01ZD

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $1.53

  • 015

    bolt (6x22)

    • Part Number: 90101-SDA-L01

    '


    KA - US - 49 State Spec

    • $6.52

  • 016

    screw, tapping

    • Part Number: 90102-SDA-L01

    '


    KA - US - 49 State Spec

    • $0.62

  • 017

    bolt-washer (10x27)

    • Part Number: 90135-S5A-003

    '


    KA - US - 49 State Spec

    • $2.45

  • 018

    bolt-washer (10x22)

    • Part Number: 90143-SR3-000

    '


    KA - US - 49 State Spec

    • $5.12

  • 019

    clip, garnish

    • Part Number: 90610-S10-003

    '


    KA - US - 49 State Spec

    • $2.03

Back to Top
frame, r. fr. seat cushionsensor assy., weight (outer)sensor assy., weight (inner)guard, protectorcover, r. fr. foot (inner) *nh167l*cover, r. rr. foot (outer) *nh167l*cover, r. rr. foot (inner) *nh167l*cover, r. fr. foot (outer) *nh167l*cover, sws rail (inner) *nh167l*cap, sws rail cover *nh167l*cover, sws rail (outer) *nh167l*cap, slide adjuster end (upper)cap, slide adjuster end (upper)clip, mat *nh167l*bolt (6x22)bolt (6x22)screw, tappingbolt-washer (10x27)bolt-washer (10x27)bolt-washer (10x27)bolt-washer (10x22)clip, garnishclip, garnish
