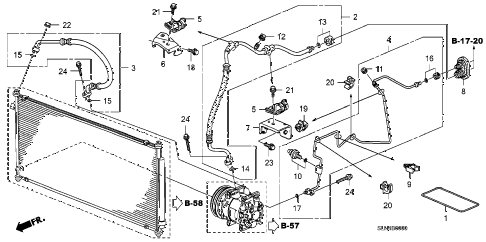

2008 fit BASE 5 DOOR 5MT A/C HOSES - PIPES diagram
Back to Top
label, air conditioner information (hfc134a)hose, suctionhose, dischargepipe, receiverclamp a, suction pipeclamp a, suction pipebracket b, air conditioner pipebracket, air conditioner pipegrommet, air conditioner pipeclamp, receiver pipeswitch assy., pressure (denso)cap h, valvecap, valve (l)o-ring set (5/8")o-ring (5/8")o-ring (1/2")o-ring (1/2")o-ring set (8mm)o-ring (8mm)bolt, ground (6x12)clip (8mm)clip, receiver pipeclip, receiver pipebolt-washer (6x16)bolt-washer (6x16)nut, flange (6mm)bolt, flange (6x12)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)
