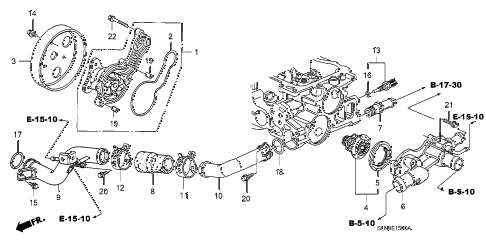

2008 fit BASE 5 DOOR 5MT WATER PUMP diagram
Back to Top
water pumpgasket, water pumppulley, water pumpthermostat assy.rubber, thermostat mountingcover, water outletjoint, tubehose, connectingpipe a, connectingpipe b, connectingclip, water hose (chuo spring)clip, hose (36.5mm) (chuo spring)sensor assy., water temperature (matsushita)bolt, special (6x12)bolt, special flange (6x16)o-ring (9.5x1.9) (panasonic)o-ring (31.2x4.1) (nok)o-ring (27.6x4.1)pin, dowel (8x10)pin, dowel (8x10)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x20)bolt, flange (6x35)
