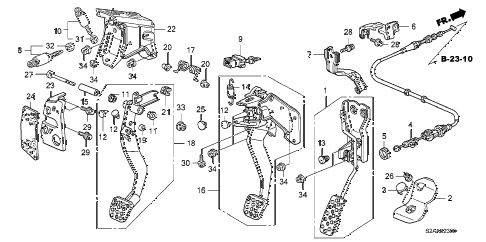

View large diagramHide diagramView diagramView printable catalog
  • 001

    pedal assy., accelerator

    • Part Number: 17800-S2A-L04

    '


    KA - US - 49 State Spec

    • $89.33

  • 002

    stopper, accelerator stroke

    • Part Number: 17818-S2A-A01

    '


    KA - US - 49 State Spec

    • $13.48

  • 003

    cap, accelerator stroke stopper

    • Part Number: 17819-S2A-A01

    '


    KA - US - 49 State Spec

    • $4.20

  • 004

    wire, throttle

    • Part Number: 17910-S2A-A51

    '


    KA - US - 49 State Spec

    • $26.78

  • 005

    seal, throttle cable

    • Part Number: 17921-SA4-730

    '


    KA - US - 49 State Spec

    • $5.43

  • 006

    stay, throttle wire

    • Part Number: 17928-S2A-A50

    '


    KA - US - 49 State Spec

    • $10.77

  • 007

    clamp, throttle wire

    • Part Number: 17932-S2A-A50

    '


    KA - US - 49 State Spec

    • $8.63

  • 008

    switch assy., clutch (inhibiter)

    • Part Number: 35710-SE3-A01

    '


    KA - US - 49 State Spec

    • $50.87

  • 009

    switch assy., stop

    • Part Number: 36750-S2A-A01

    '


    KA - US - 49 State Spec

    • $21.33

  • 010

    switch assy., clutch (tec)

    • Part Number: 36760-SE0-003

    '


    KA - US - 49 State Spec

    • $31.87

  • 011

    bush, pedal

    • Part Number: 46504-ST5-300

    '


    KA - US - 49 State Spec

    • $3.50

  • 012

    pad, pedal stopper

    • Part Number: 46505-SA5-000

    '


    KA - US - 49 State Spec

    • $2.43

  • 013

    pad, pedal stopper

    • Part Number: 46505-SA7-000

    '


    KA - US - 49 State Spec

    • $4.58

  • 014

    spring assy., pedal return

    • Part Number: 46530-S2A-003

    '


    KA - US - 49 State Spec

    • $3.70

  • 015

    collar, pedal

    • Part Number: 46535-SM4-000

    '


    KA - US - 49 State Spec

    • $7.38

  • 016

    pedal assy., brake

    • Part Number: 46600-S2A-G02

    '


    KA - US - 49 State Spec

    • $114.83

  • 017

    spring, clutch return

    • Part Number: 46907-S2A-003

    '


    KA - US - 49 State Spec

    • $4.80

  • 018

    pedal, clutch

    • Part Number: 46910-S2A-A03

    '


    KA - US - 49 State Spec

    • $96.37

  • 019

    bush, pedal pin

    • Part Number: 46911-SD4-930

    '


    KA - US - 49 State Spec

    • $3.22

  • 020

    bush a, clutch assistant

    • Part Number: 46981-S2A-003

    '


    KA - US - 49 State Spec

    • $3.20

  • 021

    bush b, assistant

    • Part Number: 46982-S2A-003

    '


    KA - US - 49 State Spec

    • $2.78

  • 022

    bracket, clutch pedal

    • Part Number: 46990-S2A-003

    '


    KA - US - 49 State Spec

    • $58.03

  • 023

    bracket, footrest

    • Part Number: 46991-S2A-A02

    '


    KA - US - 49 State Spec

    • $31.12

  • 024

    plate, footrest bracket

    • Part Number: 46992-S2A-010

    '


    KA - US - 49 State Spec

    • $104.32

  • 025

    cover, door switch

    • Part Number: 75891-611-000

    '


    KA - US - 49 State Spec

    • $3.38

  • 026

    nut, paint cutting (6mm)

    • Part Number: 90301-SV7-000

    '


    KA - US - 49 State Spec

    • $3.03

  • 027

    bolt, hex. (10x70)

    • Part Number: 92201-10070-0J

    '


    KA - US - 49 State Spec

    • $1.70

  • 028

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 029

    bolt-washer (6x16)

    • Part Number: 93404-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 030

    bolt-washer (8x16)

    • Part Number: 93406-08016-08

    '


    KA - US - 49 State Spec

    • $1.05

  • 031

    nut, hex. (10mm)

    • Part Number: 94001-10080-0S

    '


    KA - US - 49 State Spec

    • $0.82

  • 032

    nut, hex. (12mm)

    • Part Number: 94002-12080-0S

    '


    KA - US - 49 State Spec

    • $0.77

  • 033

    nut, flange (10mm)

    • Part Number: 94050-10080

    '


    KA - US - 49 State Spec

    • $1.05

  • 034

    nut-washer (8mm)

    • Part Number: 94070-08080

    '


    KA - US - 49 State Spec

    • $0.43
