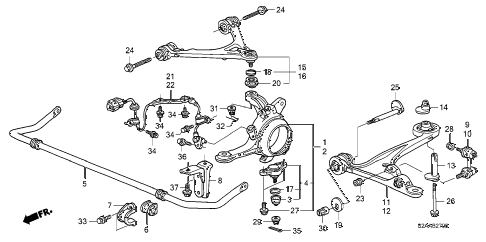

2008 s2000 CR(WITH AC) 2 DOOR 6MT FRONT KNUCKLE diagram
Back to Top
knuckle, r. fr.knuckle, l. fr.boot, ball dust (lower)joint assy., fr. ball (lower)spring, fr. stabilizerbush, stabilizer holderbracket, stabilizerbracket, stabilizer holdlink, r. fr. stabilizerlink, l. fr. stabilizerarm, r. fr. (lower)arm, l. fr. (lower)collar, fr. arm (lower)nut, self-lock cam (12mm)arm assy., r. fr. (upper)arm, l. fr. (upper)circlip, ball (lower) (musashi)circlip, control armplate, camboot, dust (upper)sensor assy., r. fr.sensor assy., l. fr.nut, flange (10mm)bolt a, arm (lower)bolt a, arm (lower)bolt b, fr. arm adjust (lower)bolt c, fr. arm (lower)bolt, flange (12x37)nut, self-lock (10mm)nut, castle (14mm)nut, self-lock (12mm)nut, arm (upper) (12mm)clip, arm (upper)bolt-washer (10x20)bolt-washer (6x12)bolt-washer (6x12)bolt-washer (6x12)bolt-washer (6x12)pin, split (3.0x22)bolt, flange (6x16)bolt, flange (12x25)
