ENGINE WIRE HARNESS (L4)
View large diagramHide diagramView diagramView printable catalogTranslate

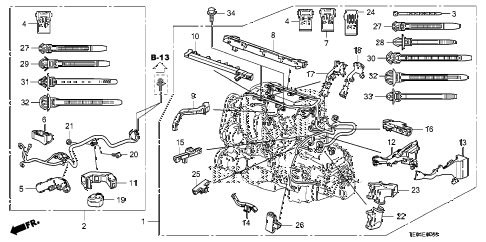

2009 accord EX 2 DOOR 5MT ENGINE WIRE HARNESS (L4) diagram

  • 001

    wire harness, engine

    Part Number: 32110-R40-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $501.20

  • 002

    sub-wire, starter

    Part Number: 32111-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $156.20

  • 003

    band, cable (90mm)

    Part Number: 32112-S2K-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.20

  • 004

    holder, corrugated (17mm) (dark brown)

    Part Number: 32116-R40-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.65

  • 005

    holder, corrugated (17u) (dark brown)

    Part Number: 32117-R40-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.65

  • 006

    holder, starter cable

    Part Number: 32118-R40-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.33

  • 008

    holder, engine harness plug hole coil

    Part Number: 32121-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $8.57

  • 009

    holder, engine harness

    Part Number: 32122-R40-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $8.57

  • 010

    holder, engine harness injector

    Part Number: 32123-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.37

  • 011

    holder, starter cable battery

    Part Number: 32124-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.33

  • 012

    holder, engine harness main

    Part Number: 32126-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $8.57

  • 013

    cover, engine harness main holder

    Part Number: 32127-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.13

  • 014

    holder, engine harness transmission

    Part Number: 32128-RRC-300

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $8.57

  • 015

    holder, engine harness transmission

    Part Number: 32130-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.38

  • 017

    holder, engine harness spool

    Part Number: 32134-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.33

  • 018

    cover, engine harness spool holder

    Part Number: 32135-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.12

  • 019

    cover, battery terminal

    Part Number: 32418-PND-300

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $10.92

  • 020

    bolt, battery terminal

    Part Number: 32601-SK7-900

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $5.38

  • 021

    nut, battery terminal

    Part Number: 32602-SK7-900

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.28

  • 022

    cover, engine control module connector (a,b)

    Part Number: 91501-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.32

  • 023

    cover, engine control module connector (c)

    Part Number: 91502-R40-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.62

  • 024

    clip, engine harness (17mm) (dark brown)

    Part Number: 91503-R40-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.52

  • 027

    clip a, harness band (129.4mm)(dark violet)

    Part Number: 91506-RTA-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.42

  • 028

    clip, wire harness (110mm) (7mm hole) (green)

    Part Number: 91507-SL9-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.27

  • 029

    clip d, wire harness (135.4mm)(black)

    Part Number: 91509-RRA-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.82

  • 030

    e-clip, harness band (179.4mm)(dark gray)

    Part Number: 91510-RAA-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.13

  • 031

    clip, harness band (155.3mm) (black)

    Part Number: 91540-STK-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.00

  • 032

    clip, harness band (164.5mm) (dark blue)

    Part Number: 91542-SNA-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.27

  • 033

    clip, harness band (135mm) (7mm hole) (natural)

    Part Number: 91558-ST5-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.27

  • 034

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.92
