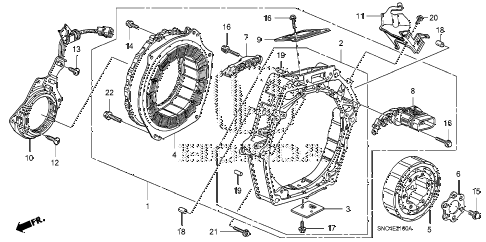

2009 civic MX(HYBRID NAVI) 4 DOOR CVT IMA MOTOR diagram
Back to Top
housing assy.housing, motorcover, drainstator assy.rotor assy.spacer, rotorbase, terminalcable assy., motorcover, terminalsensor assy., resolverstay, laf sensorbolt, special (8x22)bolt, special (8x15)bolt, flange (6x12) (for busbar)bolt (12mm)bolt-washer (6x20)bolt-washer (6x20)bolt-washer (6x20)bolt-washer (6x16)pin, dowel (14x20)pin, dowel (14x20)pin, dowel (8x14)pin, dowel (8x14)bolt, flange (6x12)bolt, flange (6x20)bolt, flange (8x20)
