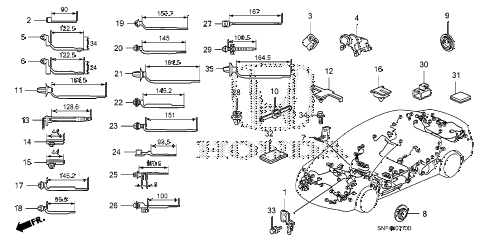

2009 civic GX 4 DOOR 5AT HARNESS BAND - BRACKET diagram
Back to Top
bracket, wire harnessband, cable (90mm)holder, corrugated (19mm) (dark green)cover, engine control module connector (a,b)band, wire harness offset (20)(122.5mm) (black)band, harness offset (10) (122.5mm) (brown)bracket, floor wire harnessgrommet (30mm)plug, hole (30mm)clip, wire harness (70mm) (natural)clip, harness band (164.5mm) (brown)clip, offset (10) (50mm) (brown)holder, connector (128.6mm) (natural)clip, wire harness (44mm) (natural)clip, connector (natural)clip, harness band (145.2mm) (natural)clip, harness band (96.9mm) (natural)clip, harness band (157.7mm) (black)clip, harness band (145mm) (black)clip, harness band (164.5mm) (dark blue)clip, harness band (145.2mm) (natural)(w/seal)clip, harness band (151mm) (brown)(w/seal)clip, wire harness (m5) (93.5mm) (brown)band, wire harness (100.5mm) (natural)clip, band (100mm) (black)clip, harness band (167mm) (natural)clip, side garnish (natural)band, wire harness (100.5mm) (white)connector, waterproof (23p 040 j/c) (black)plaster, wire harness (50x50)plaster, wire harness (50x100)bolt-washer (6x16)bolt, flange (6x16)clip, harness band (164.5mm) (dark blue)(w/seal)
