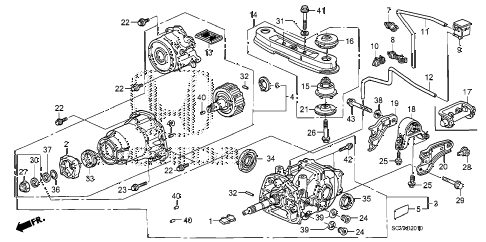

REAR DIFFERENTIAL - MOUNT - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: magnet, rr. differential Part Number: 40120-P6R-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.20

Ref #: 002	Honda Part: flange, companion Part Number: 40441-P6R-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $38.15

Ref #: 003	Honda Part: carrier sub-assy., rr. differential Part Number: 41010-P6R-345 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $609.13

Ref #: 004	Honda Part: case kit, t.c.d. Part Number: 41011-PNZ-307 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1,754.67

Ref #: 005	Honda Part: label, rr. differential information (a) Part Number: 41400-PMY-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.42

Ref #: 006	Honda Part: collar, rr. pump Part Number: 41431-P6R-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $9.78

Ref #: 007	Honda Part: clamp, breather tube (1.0) Part Number: 41932-PZP-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.55

Ref #: 008	Honda Part: clamp, breather tube (2.0) Part Number: 41933-PZP-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $3.03

Ref #: 009	Honda Part: box, breather tube Part Number: 41935-PZP-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $11.87

Ref #: 010	Honda Part: clamp, breather tube Part Number: 41936-PDZ-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.60

Ref #: 011	Honda Part: tube b, breather Part Number: 41937-PZP-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.90

Ref #: 012	Honda Part: tube a, breather Part Number: 41938-PZP-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.23

Ref #: 013	Honda Part: strainer (atf) Part Number: 48940-P6R-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $20.03

Ref #: 014	Honda Part: mount assy. a, rr. differential Part Number: 50710-SCW-A02 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $138.32

Ref #: 015	Honda Part: rubber a, rr. differential insulator Part Number: 50711-SCW-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $41.65

Ref #: 016	Honda Part: strap a, rr. differential mounting Part Number: 50713-SCW-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $12.77

Ref #: 017	Honda Part: damper, rr. differential dynamic Part Number: 50716-S9A-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $77.00

Ref #: 018	Honda Part: rubber b, rr. differential mounting Part Number: 50721-S5C-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $55.38

Ref #: 019	Honda Part: bracket b, r. rr. differentialmounting Part Number: 50725-SCW-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $16.27

Ref #: 020	Honda Part: bracket b, l. rr. differentialmounting Part Number: 50726-SCW-A02 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $8.23

Ref #: 021	Honda Part: plate, differential mount Part Number: 50772-SCW-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $13.95

Ref #: 022	Honda Part: bolt, flange (6x28) Part Number: 90001-PWT-680 Standard Qty.: 007 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.02

Ref #: 023	Honda Part: bolt, flange (6x50) Part Number: 90001-PWT-730 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.55

Ref #: 024	Honda Part: bolt, drain plug (20mm) Part Number: 90081-PWT-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $9.75

Ref #: 025	Honda Part: bolt, flange (8x16) Part Number: 90166-S87-A00 Standard Qty.: 003 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.45

Ref #: 026	Honda Part: bolt, flange (10x97) Part Number: 90167-SCV-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.55

Ref #: 027	Honda Part: nut, flange (24mm) Part Number: 90203-PX4-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $8.67

Ref #: 029	Honda Part: bolt, flange (12x73) Part Number: 90399-S5A-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $7.05

Ref #: 030	Honda Part: washer, spring (24mm) Part Number: 90403-PL9-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $5.40

Ref #: 031	Honda Part: washer (12mm) Part Number: 90553-SL4-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $3.30

Ref #: 032	Honda Part: pin, oil pump Part Number: 90702-P6R-008 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.07

Ref #: 033	Honda Part: oil seal (40x56x9) (nok) Part Number: 91201-PWT-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $10.07

Ref #: 034	Honda Part: oil seal (35x78x8.5) (nok) Part Number: 91202-PWT-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $9.68

Ref #: 035	Honda Part: oil seal (35x50x8.5) (nok) Part Number: 91203-PWT-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $10.07

Ref #: 036	Honda Part: o-ring (25x2.6) Part Number: 91303-P6R-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.48

Ref #: 037	Honda Part: ring, back-up (25mm) Part Number: 91304-P6R-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $4.45

Ref #: 038	Honda Part: washer, plain (10mm) Part Number: 94101-10800 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.02

Ref #: 039	Honda Part: washer, drain plug (20mm) Part Number: 94109-20000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $0.73

Ref #: 040	Honda Part: pin, dowel (6x10) Part Number: 94301-06100 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.20

Ref #: 041	Honda Part: bolt, flange (12x40) Part Number: 95701-12040-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.73

Ref #: 042	Honda Part: bolt, flange (8x55) Part Number: 95801-08055-08 Standard Qty.: 006 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $1.37

Ref #: 043	Honda Part: bolt, flange (10x90) Part Number: 95801-10090-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 001	Honda Part: magnet, rr. differential Part Number: 40120-P6R-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.20

Ref #: 002	Honda Part: flange, companion Part Number: 40441-P6R-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$38.15

Ref #: 003	Honda Part: carrier sub-assy., rr. differential Part Number: 41010-P6R-345 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$609.13

Ref #: 004	Honda Part: case kit, t.c.d. Part Number: 41011-PNZ-307 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1,754.67

Ref #: 005	Honda Part: label, rr. differential information (a) Part Number: 41400-PMY-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.42

Ref #: 006	Honda Part: collar, rr. pump Part Number: 41431-P6R-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$9.78

Ref #: 007	Honda Part: clamp, breather tube (1.0) Part Number: 41932-PZP-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.55

Ref #: 008	Honda Part: clamp, breather tube (2.0) Part Number: 41933-PZP-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$3.03

Ref #: 009	Honda Part: box, breather tube Part Number: 41935-PZP-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$11.87

Ref #: 010	Honda Part: clamp, breather tube Part Number: 41936-PDZ-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.60

Ref #: 011	Honda Part: tube b, breather Part Number: 41937-PZP-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.90

Ref #: 012	Honda Part: tube a, breather Part Number: 41938-PZP-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.23

Ref #: 013	Honda Part: strainer (atf) Part Number: 48940-P6R-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$20.03

Ref #: 014	Honda Part: mount assy. a, rr. differential Part Number: 50710-SCW-A02 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$138.32

Ref #: 015	Honda Part: rubber a, rr. differential insulator Part Number: 50711-SCW-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$41.65

Ref #: 016	Honda Part: strap a, rr. differential mounting Part Number: 50713-SCW-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$12.77

Ref #: 017	Honda Part: damper, rr. differential dynamic Part Number: 50716-S9A-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$77.00

Ref #: 018	Honda Part: rubber b, rr. differential mounting Part Number: 50721-S5C-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$55.38

Ref #: 019	Honda Part: bracket b, r. rr. differentialmounting Part Number: 50725-SCW-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$16.27

Ref #: 020	Honda Part: bracket b, l. rr. differentialmounting Part Number: 50726-SCW-A02 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$8.23

Ref #: 021	Honda Part: plate, differential mount Part Number: 50772-SCW-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$13.95

Ref #: 022	Honda Part: bolt, flange (6x28) Part Number: 90001-PWT-680 Standard Qty.: 007 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.02

Ref #: 023	Honda Part: bolt, flange (6x50) Part Number: 90001-PWT-730 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.55

Ref #: 024	Honda Part: bolt, drain plug (20mm) Part Number: 90081-PWT-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$9.75

Ref #: 025	Honda Part: bolt, flange (8x16) Part Number: 90166-S87-A00 Standard Qty.: 003 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.45

Ref #: 026	Honda Part: bolt, flange (10x97) Part Number: 90167-SCV-A01 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.55

Ref #: 027	Honda Part: nut, flange (24mm) Part Number: 90203-PX4-010 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$8.67

Ref #: 029	Honda Part: bolt, flange (12x73) Part Number: 90399-S5A-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$7.05

Ref #: 030	Honda Part: washer, spring (24mm) Part Number: 90403-PL9-000 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$5.40

Ref #: 031	Honda Part: washer (12mm) Part Number: 90553-SL4-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$3.30

Ref #: 032	Honda Part: pin, oil pump Part Number: 90702-P6R-008 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.07

Ref #: 033	Honda Part: oil seal (40x56x9) (nok) Part Number: 91201-PWT-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$10.07

Ref #: 034	Honda Part: oil seal (35x78x8.5) (nok) Part Number: 91202-PWT-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$9.68

Ref #: 035	Honda Part: oil seal (35x50x8.5) (nok) Part Number: 91203-PWT-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$10.07

Ref #: 036	Honda Part: o-ring (25x2.6) Part Number: 91303-P6R-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.48

Ref #: 037	Honda Part: ring, back-up (25mm) Part Number: 91304-P6R-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$4.45

Ref #: 038	Honda Part: washer, plain (10mm) Part Number: 94101-10800 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.02

Ref #: 039	Honda Part: washer, drain plug (20mm) Part Number: 94109-20000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$0.73

Ref #: 040	Honda Part: pin, dowel (6x10) Part Number: 94301-06100 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.20

Ref #: 041	Honda Part: bolt, flange (12x40) Part Number: 95701-12040-08 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.73

Ref #: 042	Honda Part: bolt, flange (8x55) Part Number: 95801-08055-08 Standard Qty.: 006 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$1.37

Ref #: 043	Honda Part: bolt, flange (10x90) Part Number: 95801-10090-08 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec	$2.40
