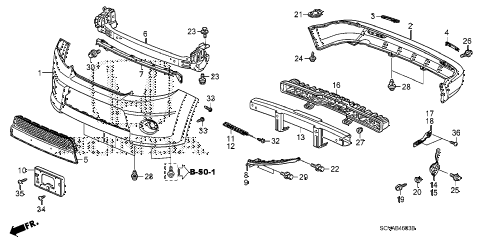

View large diagramHide diagramView diagramView printable catalog
  • 001

    face, fr. bumper (dot)

    • Part Number: 04711-SCV-A40ZZ

    '


    KA - US - 49 State Spec

    • $326.65

  • 002

    face, rr. bumper (dot)

    • Part Number: 04715-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $297.57

  • 003

    reflector assy., r. rr.

    • Part Number: 33505-SEA-013

    '


    KA - US - 49 State Spec

    • $44.92

  • 004

    reflector assy., l. rr.

    • Part Number: 33555-SEA-013

    '


    KA - US - 49 State Spec

    • $44.92

  • 005

    mesh, fr. bumper grille

    • Part Number: 71120-SCV-A80

    '


    KA - US - 49 State Spec

    • $50.64

  • 006

    beam, fr. bumper

    • Part Number: 71130-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $157.27

  • 007

    beam, fr. bumper center (upper)

    • Part Number: 71140-SCV-A50

    '


    KA - US - 49 State Spec

    • $41.62

  • 008

    beam, r. fr. bumper corner (upper)

    • Part Number: 71160-SCV-A50

    '


    KA - US - 49 State Spec

    • $121.57

  • 009

    beam, l. fr. bumper corner (upper)

    • Part Number: 71165-SCV-A50

    '


    KA - US - 49 State Spec

    • $121.57

  • 010

    base, fr. license plate

    • Part Number: 71180-SCV-A80

    '


    KA - US - 49 State Spec

    • $38.37

  • 011

    spacer, r. fr. bumper side

    • Part Number: 71193-SCV-A50

    '


    KA - US - 49 State Spec

    • $3.80

  • 012

    spacer, l. fr. bumper side

    • Part Number: 71198-SCV-A50

    '


    KA - US - 49 State Spec

    • $3.80

  • 013

    beam, rr. bumper

    • Part Number: 71530-SCV-A80ZZ

    '


    KA - US - 49 State Spec

    • $189.60

  • 014

    bracket, r. rr. bumper support

    • Part Number: 71543-SCV-A50

    '


    KA - US - 49 State Spec

    • $4.90

  • 015

    bracket, l. rr. bumper support

    • Part Number: 71548-SCV-A50

    '


    KA - US - 49 State Spec

    • $4.90

  • 016

    absorber, rr. bumper

    • Part Number: 71570-SCV-A50

    '


    KA - US - 49 State Spec

    • $91.17

  • 017

    spacer, r. rr. bumper side

    • Part Number: 71593-SCV-A00

    '


    KA - US - 49 State Spec

    • $6.22

  • 018

    spacer, l. rr. bumper side

    • Part Number: 71598-SCV-A00

    '


    KA - US - 49 State Spec

    • $6.22

  • 019

    screw-washer (4x20) (sus)

    • Part Number: 90105-S2A-000

    '


    KA - US - 49 State Spec

    • $1.65

  • 020

    grommet, bumper setting

    • Part Number: 90106-S2A-013

    '


    KA - US - 49 State Spec

    • $3.32

  • 021

    grommet, bumper end

    • Part Number: 90107-SCV-A01

    '


    KA - US - 49 State Spec

    • $0.93

  • 022

    bolt-washer (6x18)

    • Part Number: 90109-SFE-000

    '


    KA - US - 49 State Spec

    • $1.70

  • 023

    bolt-washer (8x21)

    • Part Number: 90110-SE7-000

    '


    KA - US - 49 State Spec

    • $1.23

  • 024

    screw-washer (5x16)

    • Part Number: 90126-SR4-000

    '


    KA - US - 49 State Spec

    • $4.53

  • 025

    bolt-washer (6x16) (dacro black)

    • Part Number: 90145-SP0-000

    '


    KA - US - 49 State Spec

    • $2.13

  • 026

    bolt, bumper

    • Part Number: 90149-SA0-003

    '


    KA - US - 49 State Spec

    • $3.63

  • 027

    nut, flange (8mm)

    • Part Number: 90361-SR3-000

    '


    KA - US - 49 State Spec

    • $0.38

  • 028

    clip a, bumper

    • Part Number: 91503-SZ3-003

    '


    KA - US - 49 State Spec

    • $3.58

  • 029

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 030

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 031

    screw, tapping (5x10)

    • Part Number: 93901-15180

    '


    KA - US - 49 State Spec

    • $0.55

  • 032

    screw, tapping (5x16)

    • Part Number: 93903-25320

    '


    KA - US - 49 State Spec

    • $0.55

  • 033

    screw, tapping (5x20)

    • Part Number: 93903-454G0

    '


    KA - US - 49 State Spec

    • $0.97

  • 034

    screw, tapping (6x16)

    • Part Number: 93904-46220

    '


    KA - US - 49 State Spec

    • $0.68

  • 035

    screw, tapping (5x25) (po)

    • Part Number: 93913-15620

    '


    KA - US - 49 State Spec

    • $0.65

  • 036

    screw, tapping (5x10)

    • Part Number: 93901-15180

    '


    KA - US - 49 State Spec

    • $0.55
