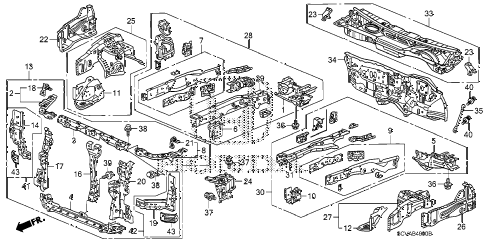

View large diagramHide diagramView diagramView printable catalog
  • 001

    outrigger, r. fr. side

    • Part Number: 04600-SCV-A00ZZ

    '


    KA - US - 49 State Spec

    • $321.92

  • 002

    frame set, r. bulkhead (upper)

    • Part Number: 04601-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $22.48

  • 003

    frame set, fr. bulkhead (upper)

    • Part Number: 04602-SCV-A10ZZ

    '


    KA - US - 49 State Spec

    • $114.35

  • 004

    crossmember set, fr. (lower)

    • Part Number: 04603-S9A-A00ZZ

    '


    KA - US - 49 State Spec

    • $167.77

  • 005

    outrigger, l. fr. side

    • Part Number: 04605-SCV-A00ZZ

    '


    KA - US - 49 State Spec

    • $338.52

  • 006

    bracket set, r. fr. sub-frame

    • Part Number: 04606-SCV-A01ZZ

    '


    KA - US - 49 State Spec

    • $118.23

  • 007

    plate set, r. fr. side back

    • Part Number: 04610-SCV-A20ZZ

    '


    KA - US - 49 State Spec

    • $216.65

  • 008

    frame set, l. bulkhead (upper)

    • Part Number: 04611-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $22.48

  • 009

    plate set, l. fr. side back

    • Part Number: 04615-SCV-A20ZZ

    '


    KA - US - 49 State Spec

    • $141.60

  • 010

    bracket set, l. fr. sub-frame

    • Part Number: 04616-SCV-A01ZZ

    '


    KA - US - 49 State Spec

    • $81.43

  • 011

    wheelhouse set, r. fr.

    • Part Number: 04674-SCV-A00ZZ

    '


    KA - US - 49 State Spec

    • $47.35

  • 012

    wheelhouse set, l. fr.

    • Part Number: 04684-SCV-A70ZZ

    '


    KA - US - 49 State Spec

    • $59.12

  • 013

    bulkhead, fr.

    • Part Number: 60400-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $281.37

  • 016

    stay, bulkhead center

    • Part Number: 60434-SCV-A00ZZ

    '


    KA - US - 49 State Spec

    • $48.02

  • 017

    stay, r. fr. bulkhead side

    • Part Number: 60435-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $24.97

  • 018

    bracket, r. fr. fender

    • Part Number: 60438-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $15.18

  • 020

    stay, l. fr. bulkhead side

    • Part Number: 60485-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $21.15

  • 021

    bracket, l. fr. fender

    • Part Number: 60488-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $15.18

  • 022

    member, r. fr. wheelhouse (upper)

    • Part Number: 60614-SCV-A01ZZ

    '


    KA - US - 49 State Spec

    • $30.22

  • 023

    bracket, fr. fender (rr)

    • Part Number: 60619-S6A-300ZZ

    '


    KA - US - 49 State Spec

    • $6.78

  • 024

    base, battery

    • Part Number: 60630-SCV-A00ZZ

    '


    KA - US - 49 State Spec

    • $59.58

  • 025

    housing, r. fr. shock absorber

    • Part Number: 60650-SCV-A10ZZ

    '


    KA - US - 49 State Spec

    • $294.00

  • 025

    housing, r. fr. shock absorber

    • Part Number: 60650-SCV-A11ZZ

    '


    KA - US - 49 State Spec

    • $126.72

  • 026

    member, l. fr. wheelhouse (upper)

    • Part Number: 60714-SCV-A01ZZ

    '


    KA - US - 49 State Spec

    • $30.22

  • 027

    housing, l. fr. shock absorber

    • Part Number: 60750-SCV-A80ZZ

    '


    KA - US - 49 State Spec

    • $294.00

  • 027

    housing, l. fr. shock absorber

    • Part Number: 60750-SCV-A81ZZ

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 028

    frame, r. fr. side

    • Part Number: 60810-SCV-A20ZZ

    '


    KA - US - 49 State Spec

    • $556.03

  • 029

    frame, r. fr. side

    • Part Number: 60811-SCV-A00ZZ

    '


    KA - US - 49 State Spec

    • $71.20

  • 030

    frame, l. fr. side

    • Part Number: 60910-SCV-A80ZZ

    '


    KA - US - 49 State Spec

    • $434.08

  • 031

    frame, l. fr. side

    • Part Number: 60911-S9A-A70ZZ

    '


    KA - US - 49 State Spec

    • $124.78

  • 033

    dashboard (upper)

    • Part Number: 61100-SCV-A73ZZ

    '


    KA - US - 49 State Spec

    • $273.32

  • 034

    dashboard (lower)

    • Part Number: 61500-SCV-A80ZZ

    '


    KA - US - 49 State Spec

    • $400.70

  • 035

    rod, brake pedal support

    • Part Number: 74232-S9A-000

    '


    KA - US - 49 State Spec

    • $8.75

  • 036

    bolt-washer (8mm)

    • Part Number: 90101-S6A-000

    '


    KA - US - 49 State Spec

    • $2.55

  • 037

    bolt-washer (8x20)

    • Part Number: 90105-SV1-000

    '


    KA - US - 49 State Spec

    • $0.30

  • 038

    bolt, flange (6x15)

    • Part Number: 90108-S0A-003

    '


    KA - US - 49 State Spec

    • $0.30

  • 039

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 040

    bolt-washer (8x16)

    • Part Number: 93407-08016-08

    '


    KA - US - 49 State Spec

    • $1.13

  • 041

    bulkhead set, r. fr. side

    • Part Number: 04677-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $23.70

  • 042

    bulkhead set, l. fr. side

    • Part Number: 04687-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $23.70

  • 043

    bracket, r. fr. fender (lower)

    • Part Number: 60437-SCV-A50ZZ

    '


    KA - US - 49 State Spec

    • $8.57
